The most technologically advanced detection system built for accurate screening and efficient operation at an overall lower cost of ownership.
Description:

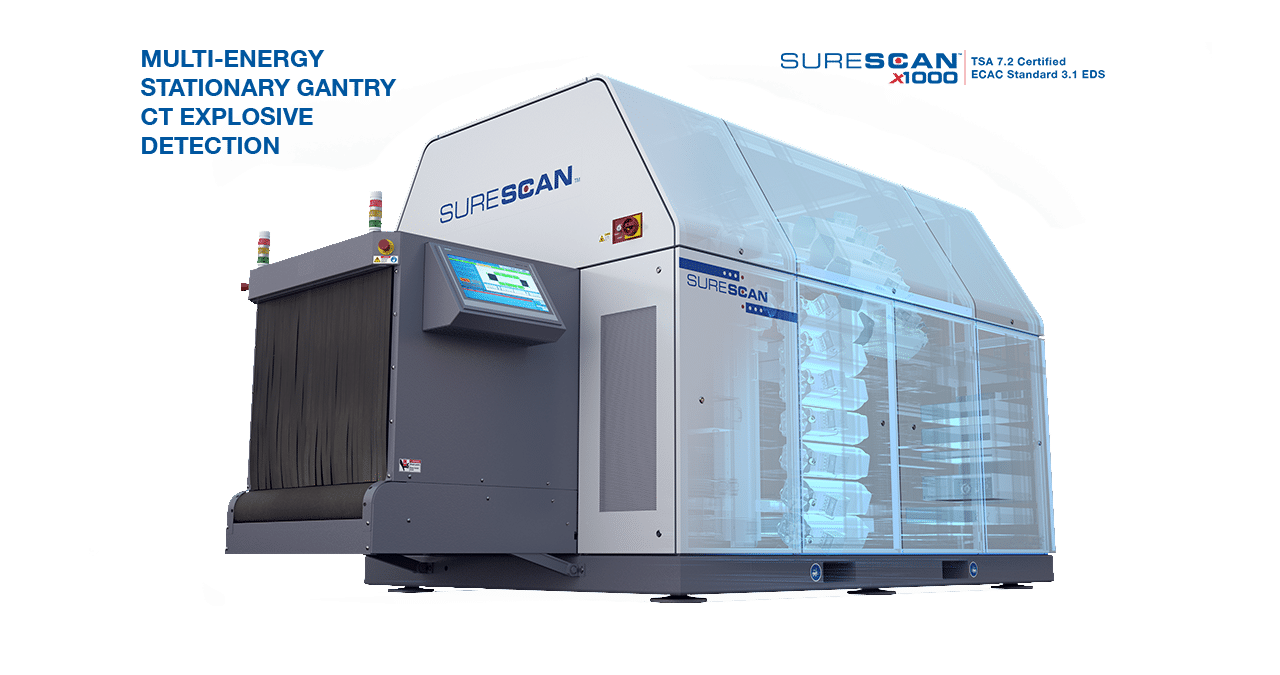

The SureScan x1000 is a high speed TSA 7.2 certified and ECAC Standard 3.0 and 3.1 approved multi-energy stationary gantry explosive detection system (EDS) for checked baggage screening, representing the next generation in EDS detection technology and design.
Through the application of advanced science and technology, the x1000 meets current detection demands and is adaptable to meet the evolving threats around the world. With its innovative use of proven computed tomography (CT) and implementation of multi-energy detection for atomic number analysis, the x1000 delivers low false alarm rates, and a high level of accuracy of current and emerging threat detection, including homemade explosives (HME’s). The combination of these features allows the x1000 to adapt and, in essence, future proofs the product throughout its life cycle.
Product Features:
- A 360 Degree Electronic Screening – (Electronic Rotating Static Gantry) that provides high reliability, high availability and low maintenance costs
- A large rectangular tunnel throughout the scanner, which prevents costly bag jams and system downtime
- Lower operating power consumption and uses simple air cooling, eliminating pricey air conditioning operation and maintenance fees
- Upgradeable processing and algorithm engines that allow for seamless adjustments such as belt speed, and implementation of software enhancements to address emerging threats
- An efficient platform provides for ease of set-up and self-calibration feature preventing downtime
Technical Specifications:
| Characteristics | |
| Model | SureScan x1000 |
| CT geometry | Fixed sources; no rotating gantry; minimal moving parts (conveyor belt and fans only) |
| Tunnel dimensions (W x H) | 1000 mm x 800 mm |
| Maximum object size (W x H x L) | 1000 mm x 800 mm x 2500 mm; full rectangular tunnel the length of the scanner (no neck down) |
| Dimensions & weight (W x H x L) | 221 mm x 227 mm x 4843 mm; 5942 kg( eight customizable up to 265 mm based on pedestal size) |
| Conveyor height | 457 mm ( eight customizable up to 838 mm based on pedestal size) |
| Belt speed | ECAC certified at .35 m/s and .5 m/s |
| Operating environment | Scanner: 0°C up to 40°C; 0% to 95%, non-condensing, air-cooled scanner, no air conditioning requiredCT/Multiplexer Rack: 0°C to 40°C; 0% to 95% RH, non-condensing. |
| Power supply requirements | Scanner: 400/480/575 VAC +/-5%, 3-phase, 50/60 Hz, 15 amps (typical loads) at 480 VACCT/Multiplexer Rack: 208 VAC, 50/60 Hz; 3 drops (one 15 amps, two 10 amps – typical loads) |
| Power consumption | Scanner: 7.8 kW typical. 50% less power than rotating gantry |
| X-ray leakage | 21 CFR part 1020.40 Cabinet X-ray Systems and Council Directive 2013/59/Euratomvalidation to county specific limits performed in-house and on site |
| X-ray voltage | 160 kV |
| CT Performance | |
| Throughput | 1800 b/h @0.50 m/s (contact SureScan for latest certified speeds by region) |
| Multi-energy material discrimination | Multi-energy, photon counting detectors; density and effective atomic number usedfor discrimination in 3D reconstruction |
| Operator Interface | |
| Graphical interface | 2D (radiograph), 3D (volumetric), and 2D (slice) images of scanned bags is available; user interface supports standard capability for image viewing |
| Operational and Maintenance | |
| User/operator interface | Easy to use graphical interface on scanner utilizing touchscreen input. GUI interfaceon workstations. Extensive manuals and training available |
| Calibration intervals & cycle times | Self calibrating between bags, no impact to machine availability |
| Safeguarding against futureregulatory requirements | Advanced technology, software upgrades can be made at the customer’s request and schedule, future algorithms are upgradeable in the field, new explosives classes like HMEs can be added, software configurable throughput (belt speed), multiple and simultaneous algorithms; modular design of hardware and software simplifies upgrades |
| Ability to upgrade or enhancetechnological capability | Use of advanced technology and a modular design allows for hardware and/or softwareupdates in the field |
| Certification & Awards | TSA 7.2ECAC 3.0 AND 3.12015 Explosive Detection Winner, Government Security NewsAirport, Seaport, Border Security Award |
