An easy-to-use and flexible series of horns and strobes to offer notification during fires.
Description:

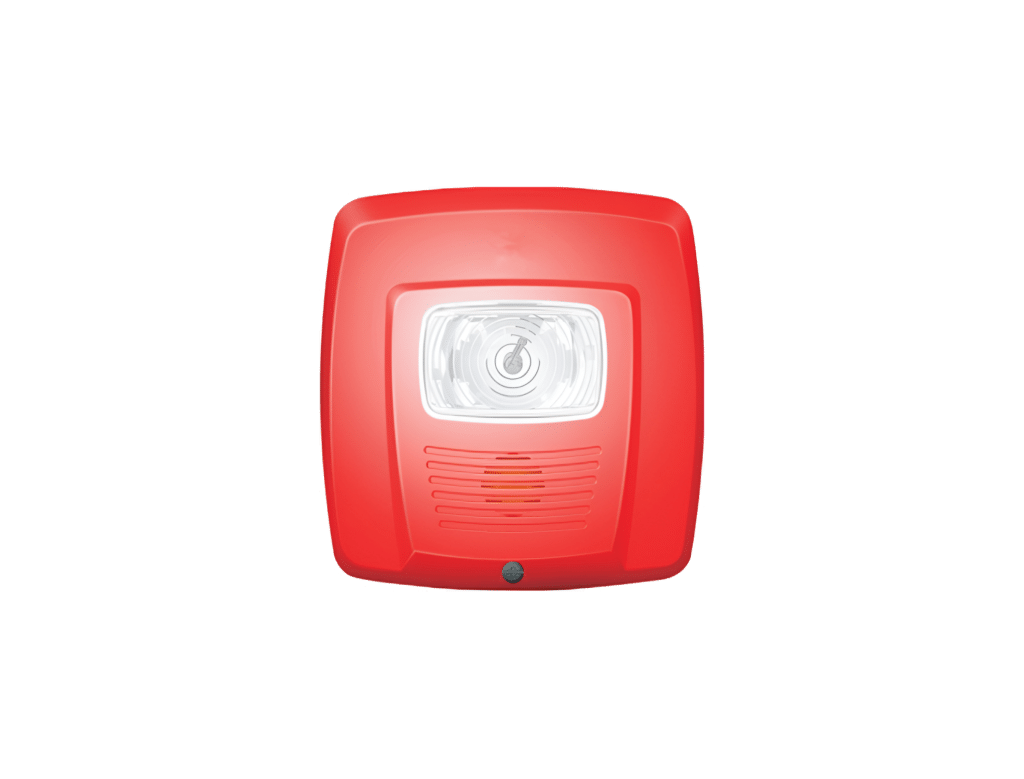

The System Sensor line of notification devices offers the most flexible and easy-to-use line of horns, strobes, and horn strobes in the industry. With red housing, universal fire symbol and a ceiling mount accessory available these devices can meet virtually any application. They also mount to a wide variety of back box sizes to offer the most flexibility in installation
Product Features:
- Mounting plate included for compatibility with a wide range of back box sizes,
- Three field selectable candela settings: 15, 75, and 115,
- Easy to use rotary dials for selection of candela and horn settings,
- Built in synchronization feature keeps strobes in sync for up to 30 minutes,
- Strobes Listed to UL1638; Horns Listed to UL464,
- Horn settings on the horn strobe model include high and low volume, continuous or temporal 3 tone,

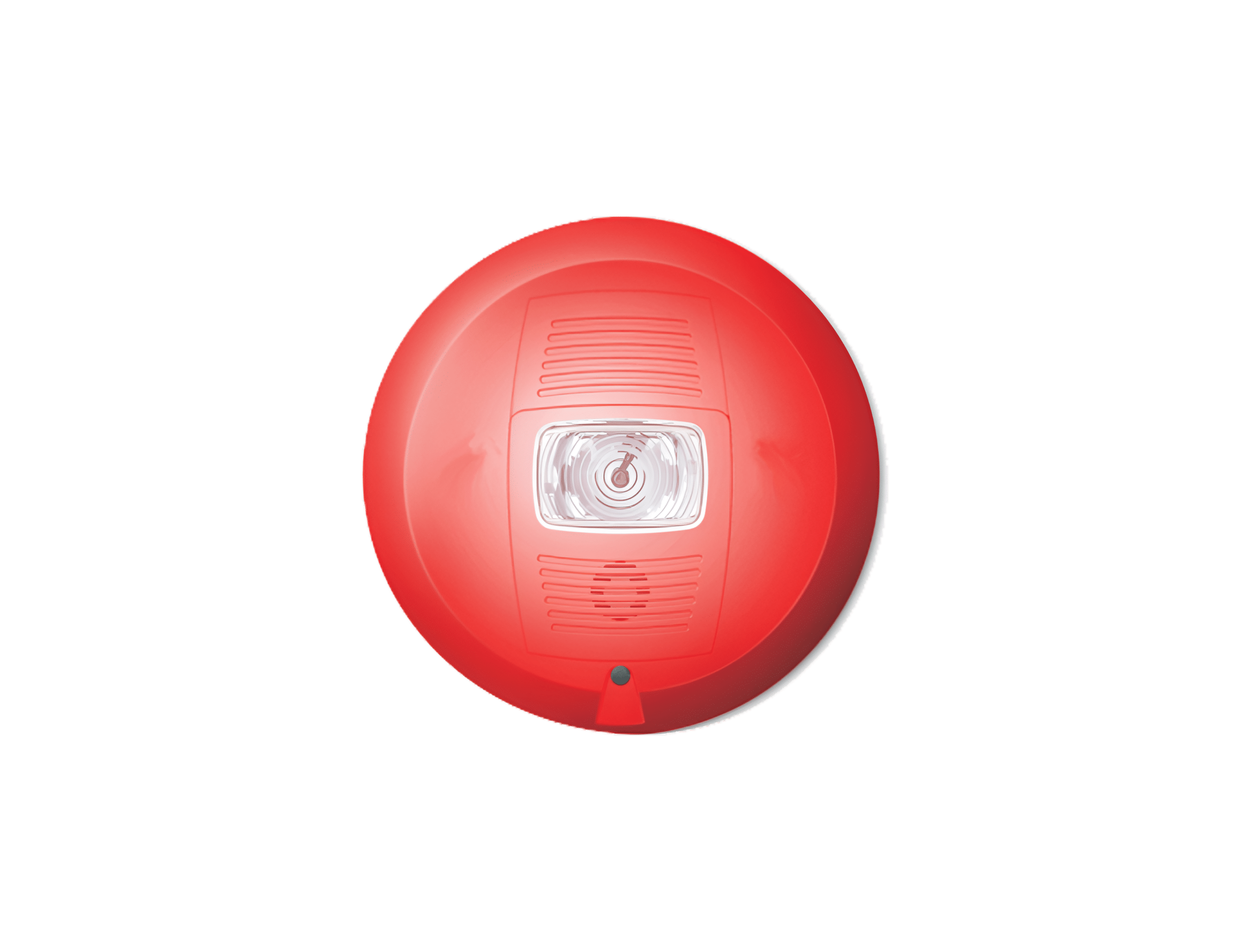

- Round trim ring available for ceiling mount applications,
- Universal Fire symbol is language independent,
- Trim plate allows the mini horn to mount to a variety of backboxes and fit aesthetically with the horn strobe and strobe.
Technical Specifications:
| ARCHITECT/ENGINEER SPECIFICATIONS | |
| General | System Sensor strobe and horn strobes shall mount to a 2″x4″, 4″x4″, Single Gang, Double Gang, 4″ Octagon, 3.7″ x 3.7″, 2″ round, 2.36″ x 2.36″, 3.54″ x 2.6″, 1.77″ back box. System Sensor devices shall be powered from a non-coded notification appliance circuit output and shall operate on a nominal 24 volts. 24-volt-rated notification appliance circuit outputs shall operate between 17 and 33 volts. Devices operate between 32 and 120 degrees Fahrenheit from a regulated DC or full-wave rectified unfiltered power supply. Strobes and horn strobes shall have field-selectable candela settings including 15, 75 and 115 cd. The devices shall not operate on a coded power supply. Horn – strobe and strobe devices shall have built-in synchronization capability. Upon initial power up the devices shall be synchronized for up to 30 minutes. |
| PHYSICAL/ELECTRICAL SPECIFICATIONS | |
| Standard Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10 to 93% non-condensing |
| Strobe Flash Rate | 1 flash per second |
| Nominal Voltage | Regulated or regulated 24 DC/FWR1 |
| Operating Voltage Range2 | 16 to 33 V (24 V nominal) |
| Input Terminal Wire Gauge | 14 to 18 AWG* |
| Strobe and horn strobes dimensions(including lens) | 5.15″ L x 5.0″Wx 1.5″ D (131 mm x 127mmx 38mm) |
| Ceiling trim ring dimensions (sold as a pack of 5) | 6.8 ” dia / 1.5″ depth (173 mm dia / 1.5″ depth) |
