An audible and visible alarm notification compatible with DETNOV control panels.
Description:

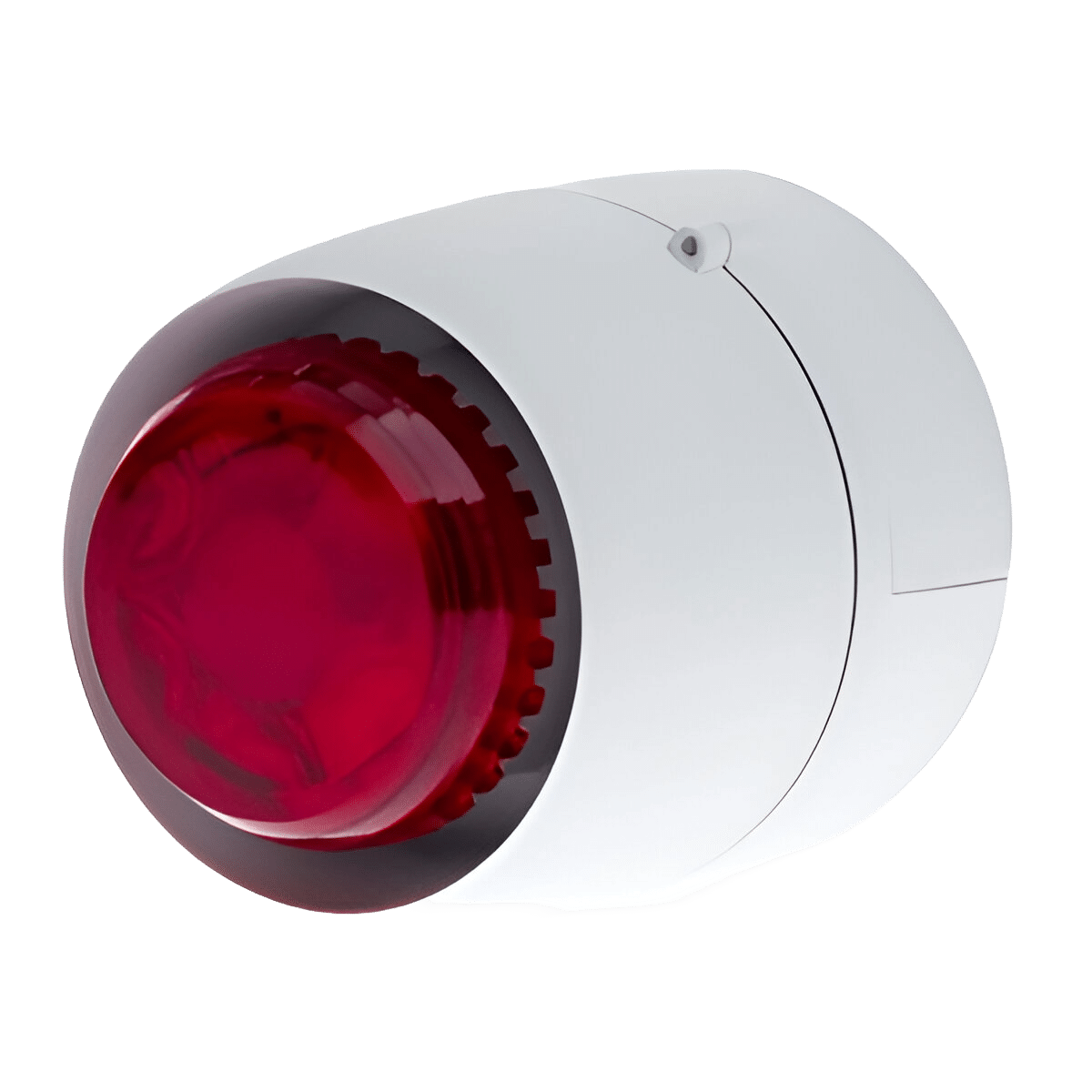

The PED-2X1 series beacons are conventional beacons compatible with Detnov’s conventional control panels and addressable sounder modules MAD-43X, in addition to most conventional power plants on the market. Beacons of the PED-2X1 series are certified according EN 54-23. This product range is designed for use with conventional and analog fire detection systems.
Product Features:
- Compatible with Detnov’s conventional control panels and addressable sounder modules
- Low current consumption and highly efficient
- Suitable for indoor use
- Easy installation with base
- Approved EN 54-23
Technical Specifications:
| BEACON | |
| Operating voltage | From 18 to 30 VDC |
| Current consumption at 24 V | From 25 to 40 mA, depending on the tone |
| Flash coverage ceiling installation | C-3-8 |
| Flash coverage wall installation | W-2.4-8 |
| CONNECTIONS | |
| 2 x 1,5 mm2 twisted | |
| ENVIRONMENT | |
| Operating temperature | From -20°C to +70°C |
| Relative humidity | 95% without condensation |
| IP Index | PED-221C and PED-231C: IP21CPED-221W and PED-231W: IP33C |
| PHYSICAL FEATURES | |
| Material | ABS |
| APPROVALS | |
| EN 54-23 | |
| Certificate number: 0370-CPR-2966 | |
