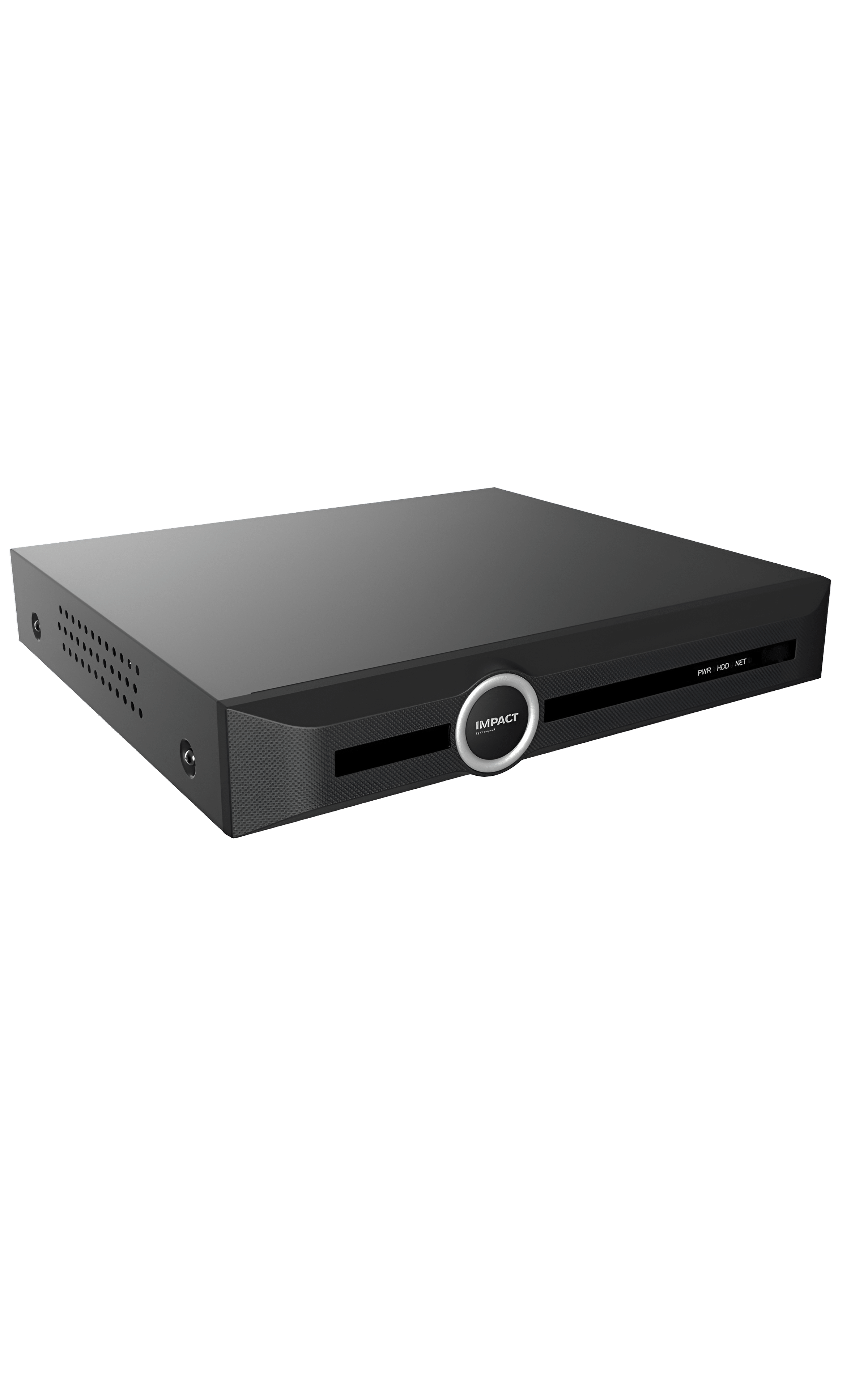

A network video recorder for high-quality video surveillance. It provides up to 10 channel input.
Product Description:
The new Impact series of Network Video Recorders (NVRs) is beneficial to customers who want a higher quality of video surveillance enhanced by HD and an advanced setup. This product can be used for video surveillance in banks, offices, manufacturing industries, warehouses, and parking lots – where image quality and clarity is a key priority. The smart features offered by the new Impact series of NVRs greatly help in the effective analysis of the video feed, while optimizing storage.
Product Features:
- IH+265/H.265/H.264 video formats
- Connectable to the third-party network cameras
- Up to 10 channel input
- Supports live view, storage, and playback of the connected camera at up to 8MP resolution
- HDMI and VGA simultaneous output
- HDMI Video output at up to 4K (3840 × 2160) resolution
- 1 SATA interfaces, up to 10TB for 1 HDD
- IH+265 compression effectively reduces the storage space and costs by up to 75%
- 1×RJ45 self-adaptive 10/100 Mbps network interface
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
- VCA detection alarm is supported
- Web6 supports plug-in free browsing and can preview videos on all browsers
Technical Specification:
| INPUT | |
| Video Input | 10-ch |
| Max Resolution | 8MP |
| Bandwidth | Incoming 50Mbps; Outgoing 40Mbps |
| OUTPUT | |
| HDMI/VGA Output | HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768 |
| Screen Split | 1/3/4/5/6/7/8/9/10 |
| Audio Output | 1xRCA |
| DECODING | |
| Decoding Format | IH+265/H.265/H.264 |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 5×720P, 5×4CIF |
| Synchronous Playback | 1×6MP, 1×5MP, 1×4MP, 1×3MP, 3×1080P, 4×720P |
| Records Encryption | Yes |
| HARD DISK | |
| SATA | 1 SATA interface for 1 HDDs |
| Capacity | Up to 10TB for each HDD |
| EXTERNAL INTERFACE | |
| Network Interface | 1xRJ45 self-adaptive 10/100 Mbps network interface |
| USB Interface | 2xUSB 2.0 |
| NETWORK | |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, Telnet, RTMP |
| GENERAL | |
| Web Version | Web6 |
| Language | English |
| Operating Conditions | -10°C~55°C, 10%~90% RH |
| Power Supply | DC12V 3.33A |
| Consumption (without HDD) | ≤10W (without HDD) |
| Chassis | 1U |
| Dimensions | 44×255×231mm, (1.78×10.04×9.09 inch) |
| Weight (without HDD) | 0.8Kg (1.76lb) |
