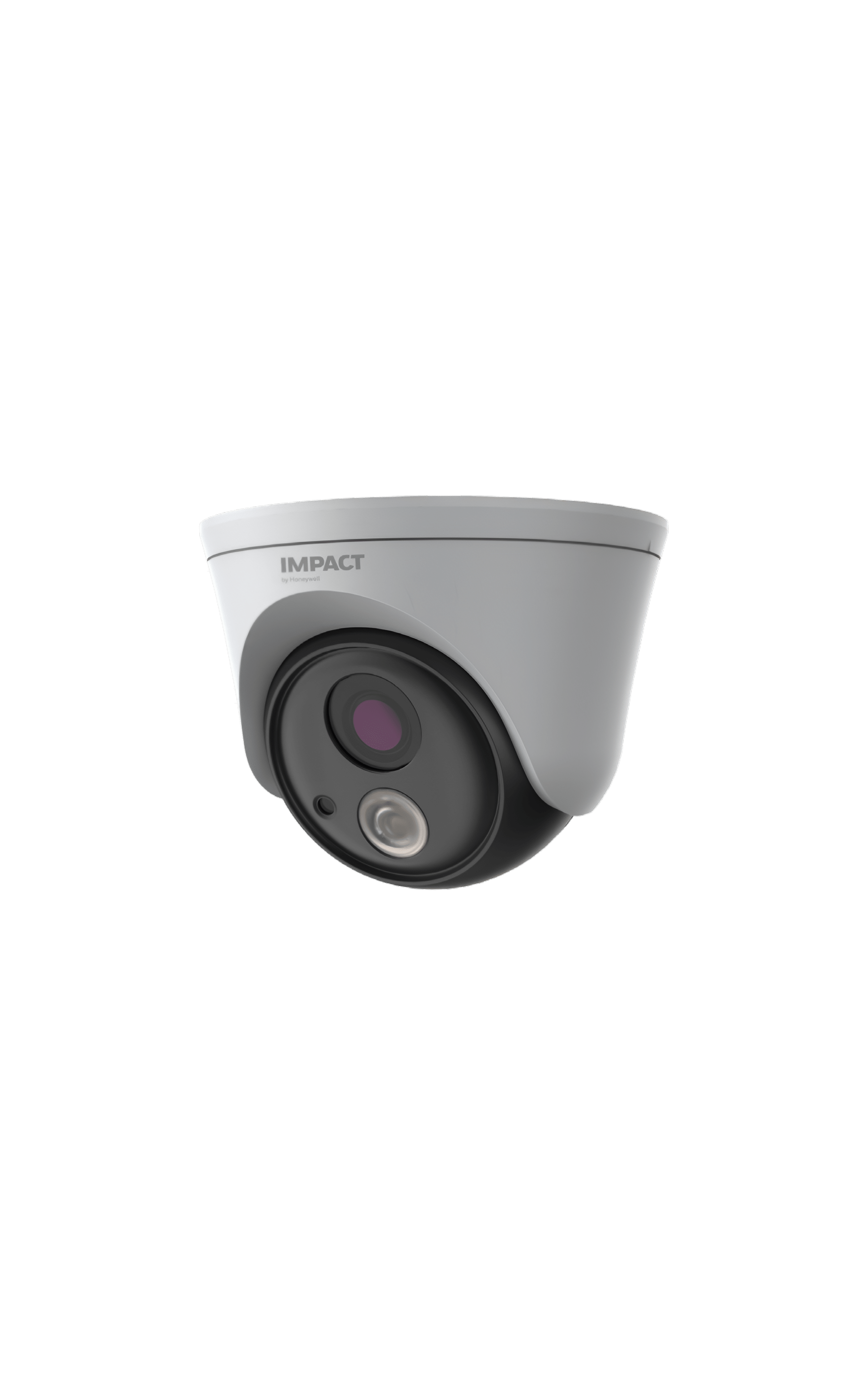

A high-resolution, dome camera with Wide Dynamic Range for clear video recording even at night.
Product Description:
The new Impact IP series of cameras provide high-quality yet affordable surveillance for small and medium businesses which include small retail shops, gyms, schools, residential homes, etc. The new series includes high resolution IP IR cameras, in both eyeball dome and bullet configurations, and comes with fixed and variable lens options. The new Impact IP series caters to all kinds of customer applications. The cameras come with various variants of IR LEDs to provide best-in-class, effective and efficient surveillance even during the night. The cameras are IP67 rated which makes them resilient for any outdoor applications as well.
Product Features:
- Metal + Plastic Housing
- Up to 2592×1520@25fps
- Smart IR, IR Range: up to 30M
- Support tripwire and perimeter
- IH+265/H.265/H.264
- Min. illumination Color: 0.02Lux@F1.6
- 120dB WDR
- Built-in Mic, SD Card Slot, Reset Button
- Operating Conditions -35°C~65°C, 0~95% RH
- POE, IP67
Technical Specification:
| CAMERA | |
| Image Sensor | 1/2.8 CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan 0~360°, tilt 0~75°, rotate 0~360° |
| LENS | |
| Lens Type | Fixed |
| Focus | 2.8mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 93.8° |
| ILLUMINATOR | |
| IR LEDs | 2 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | IH+265/H.265/H.264 |
| Video Bitrate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bitrate | 8K~48Kbps |
| IMAGE | |
| Max. Resolution | 2592×1520 |
| Main Stream | PAL: 25fps (2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)NTSC: 25fps (2592×1520, 2560×1440), 30fps (2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288)NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| FEATURE | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| NETWORK | |
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Impact Series ANR Support NVR) |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
| Remote Connection | ≤7 |
| Client | IH-VIEW |
| Web Version | Web5 |
| INTERFACE | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| Reset Button | Yes |
| On-board Storage | Built-in MicroSD card slot, up to 512 GB |
| GENERAL | |
| Web Client Language | English |
| Operating Conditions | -35°C~65°C, 0~95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 6W (12V) MAX: 7W (PoE) |
| Protection | IP67, Lightning protection, surge protection |
| Dimensions | 116.6×83.7mm (4.59×3.30inch) |
| Weight | Metal+Plastic: 0.34Kg (0.75lb) Metal: 0.47Kg (1.04lb) |
