A network video recorder that can manage up to 72 channels and can be expanded to host 5 HDDs.
Product Description:

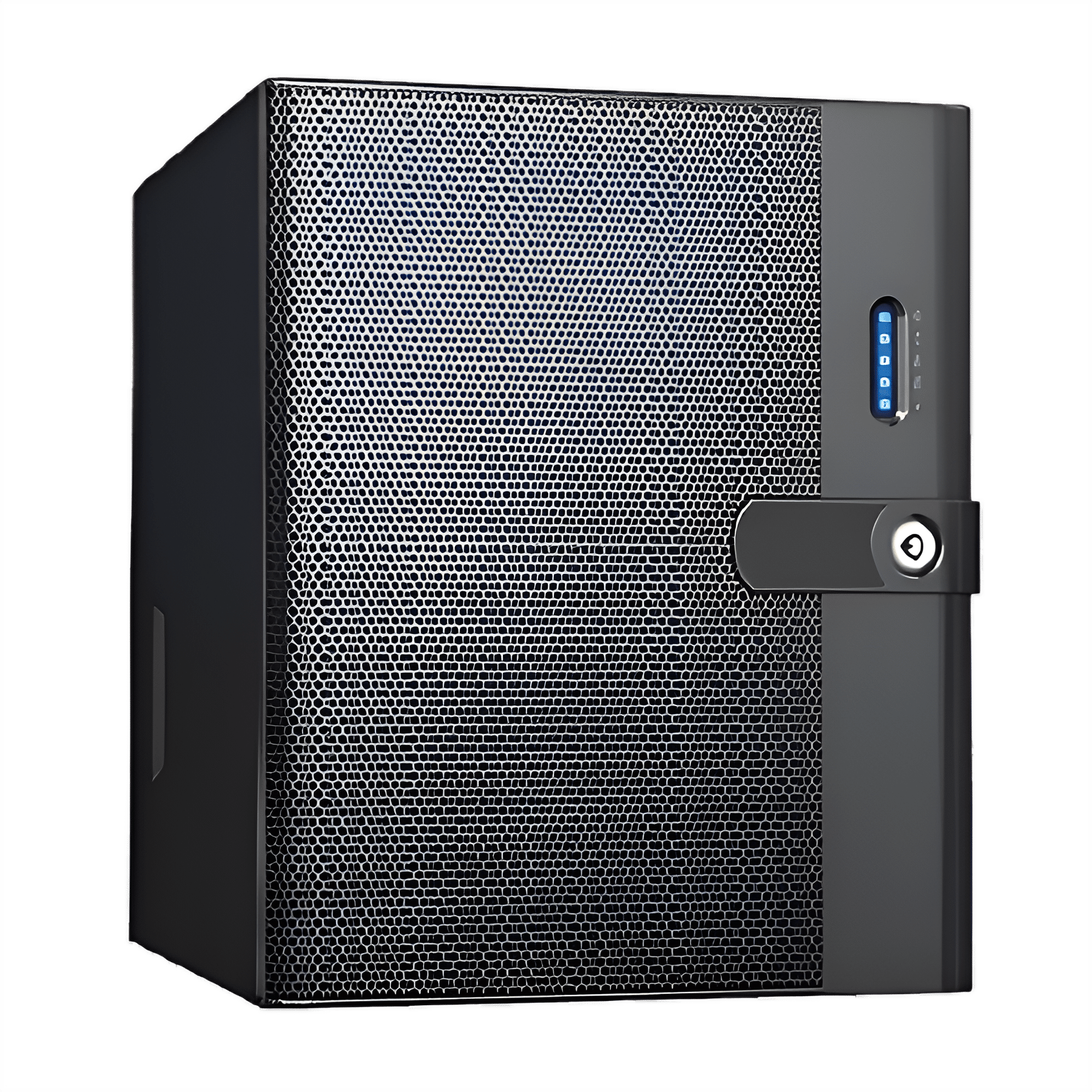

Record from and manage up to 100 cameras with the GNR-340 72-Channel Tower Standalone NVR (No HDD) from ACTi. This recorder can be expanded to host five HDDs up to 18TB each for a maximum internal capacity of 90TB. Compliance with ONVIF profile S ensures interoperability with ONVIF IP cameras.
Product Features:
- 5-bay Tower Standalone NVR
- Maximum Number of Video Devices: 100 (Free License: 32)
- Multi-Browser Support for Lite Web Client
- System Monitoring and Notifications
- Location-based management with e-Map & Google Map
- Workstation, Web Client, Mobile Client
- Event Trigger, Response, Notification and Snapshot to Line Messenger
Technical Specification:
| Model | GNR-340 |
| Maximum Number of Cameras | 100 |
| Maximum Number of Clients | Local: 1, Remote: 4 |
| Free License | 32 (32 channels for ACTi and 1 channel for third-party video device) |
| Video Resolution | Support all ACTi cameras in all resolutions |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Speed Up | Yes |
| Dual Stream Management | Yes |
| Recording Throughput | 180 Mbps |
| HDD Interface | Maximum 2 SATA disks; Options to have empty bays, one 2TB or one4TB storage disk included |
| External Storage Interface | iSCSI, USB |
| RAID Level | No |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
| e-Map | Yes |
| PTZ Control | Yes |
| Playback Control | Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop |
| Synchronized Playback | up to 225 layout grids** |
| Local Access | USB joystick, keyboard & mouse |
| Remote Access | Workstation, Web Client, Mobile Client |
| Event Trigger | [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss and recovery, Disk Write Failure and Available. [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification, Send Snapshot to Line Messenger |
| Permission Control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification |
| Video Export | RAW, AVI, MP4, EXE, GPU Hardware accelerated video export supported with AVI format |
| Server Operating System | Windows 10 IoT |
| ONVIF Compliant | Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Corporate) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Approvals | CE, FCC, UL (for built-in power adapter) |
