A mid-level face recognition reader suitable for door access and pedestrian access.
Product Description:

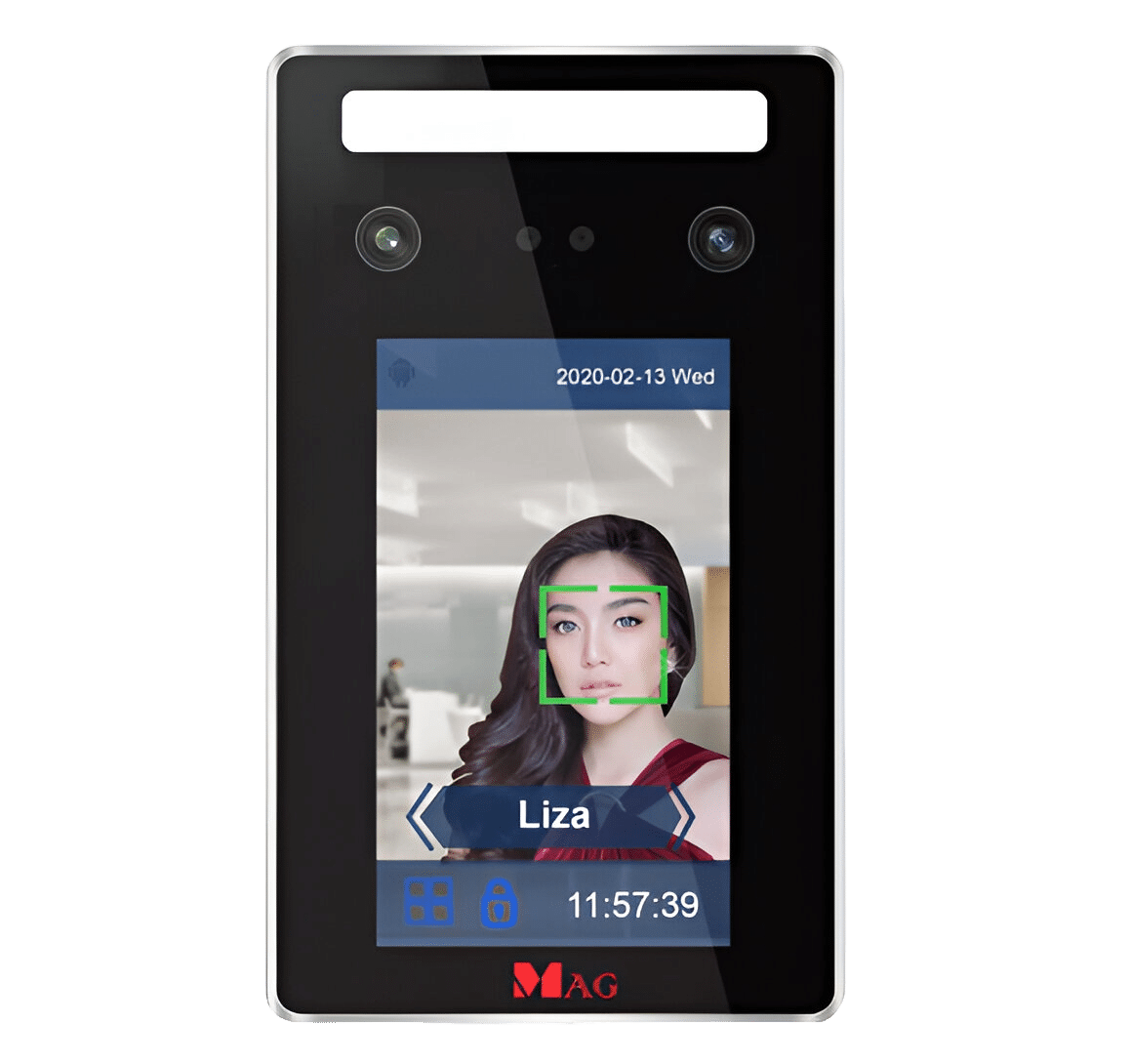

MAG FR300 face recognition reader is a dynamic face recognition reader built with an advanced face tracking algorithm for faster and more accurate dynamic face detection. The modern, compact and slim design with premium finishes make it easy to fit into any commercial premises either for door access or pedestrian access. It is suitable for use in pedestrian gate or door access for office buildings, school, hospital, airport, condominium, factory, etc.
Product Features:
- Automatic Adaptive Detection Reading (AADR) technology.
- Automatic Depth Measuring (ADM) technology.
- Dual camera featuring IRSense and ColorSense technology.
- Adjustable detection range.
- High face capacity up to 10,000 face.
Technical Specifications:
| User ID/ Face Capacity | 10,000 |
| Event Record Capacity | 1,000,000 |
| Access Mode | Dynamic Face Recognition, PINFace Recognition + PIN |
| Face Recognition Mode | 1:1, 1:N |
| Validation Display | Name & Number |
| Real Time Face Detection | < 0.2sec |
| Intelligent Function | Infrared Live Person Identification Detection |
| Facial Scanning Range | Purely Dynamic Face Recognition: 0.5-3mInfrared Live movement detection: 0.5-1.5m |
| Dual Camera | ColorSense camera and IRSense camera |
| Dual Light | Smart LED light and infrared light |
| Display Screen | 5 inch smart touch screen |
| Operating System | LINUX |
| False Rejection Rate (FRR) | <= 0.1% |
| False Approval Rate (FAR) | <= 0.001% |
| Relay Output | Lock Relay OutputAlarm Relay Output |
| Relay Input | Door sensor |
| U-Disk Output | Yes |
| Push Button Input | Yes |
| Communication Interface | RS485, RS232,TCP/IP |
| External Wiegand Port | Yes, WG26/34 Output/Input |
| Power Supply | DC 12V,1A |
| Working Temperature | -15°C to 60°C |
| Casing | Aluminum alloy |
| Dimension (L x W x H) | 110mm x 20mm x 185mm |
