FEP CARGO

Designed for screening pallets and large packages, this x-ray system is suitable for high-security cargos.

Description:

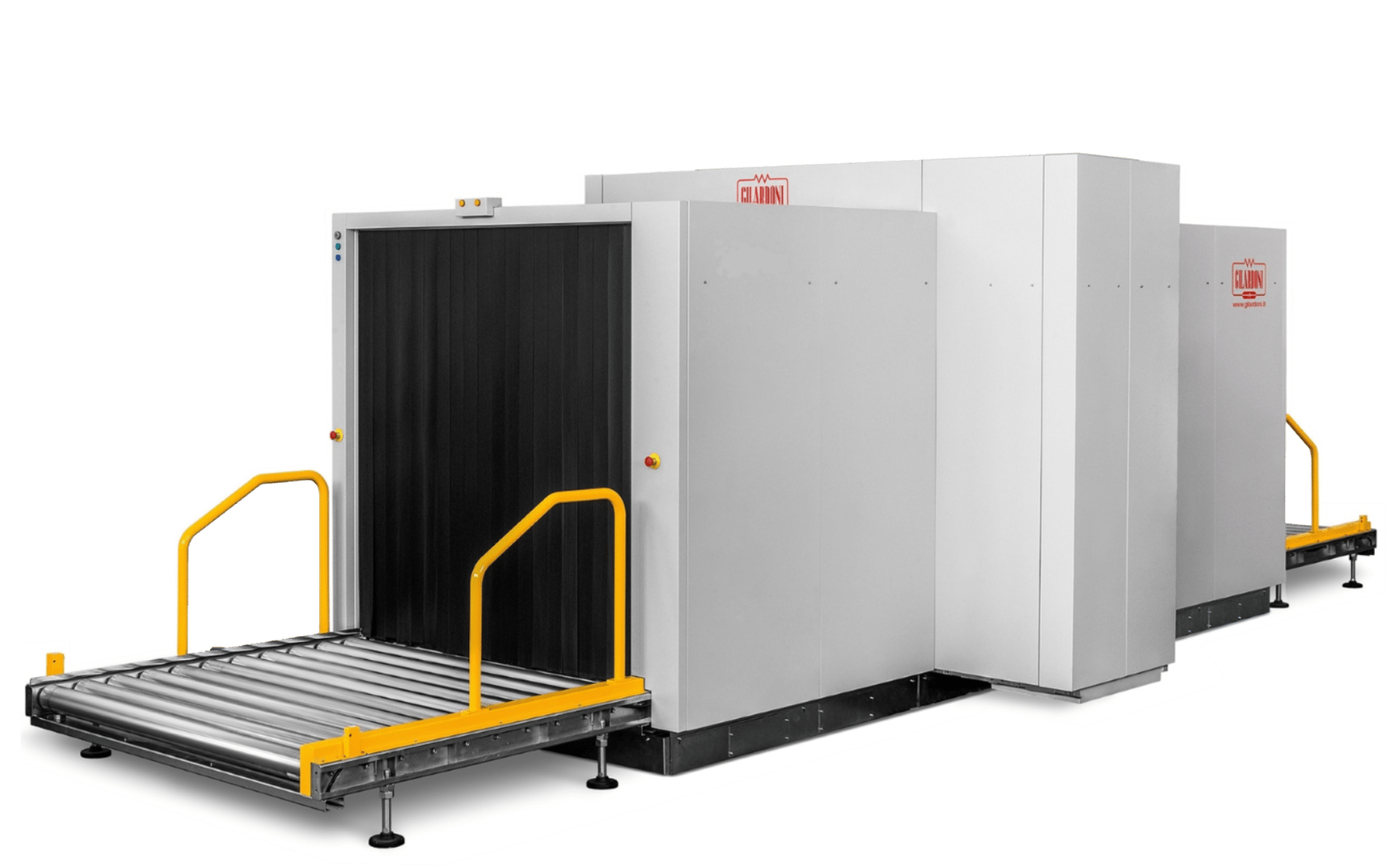

The new FEP ME CARGO DV is a multi-energy X-ray system suitable for screening goods on pallets up to 3000 kg. It has one 200kV X-ray source and a large inspection tunnel opening of 180cm x 180cm. The FEP ME CARGO DV allows detection of organic materials (including explosives and drugs), and of weapons, detonators and dangerous objects representing threats to security. Multi-energy technology allows the screen to display the nature of different materials inside the inspected objects using a chromatic code.

Product Features:

• Automatic archiving of work sessions in raw format, to be able to review and rework them a second time.
• Image archive chosen by the operator on HDD (up to 100.000 images) in PNG format.
• Saving images and sessions to external USB storage media.
• Self-diagnosis system showing the screen fault.
• Rays emit light signals in progress placed at the ends of the tunnel.
• Man-machine interface with time, date, 2 luggage counters (1 resettable, 1 total), duration time of the work session and operator ID.
• Manuals in pdf format that can be viewed in the software of the machine and outside.
• Import / export data with USB key.
• Setting system uses parameters, even in remote mode.
• Export / import user database and export machine operation report.
• Possibility to change the sliding direction of the images.
• Ready to use 16:9 monitors.
• Ready for connection to a printer.



Technical Specifications:
