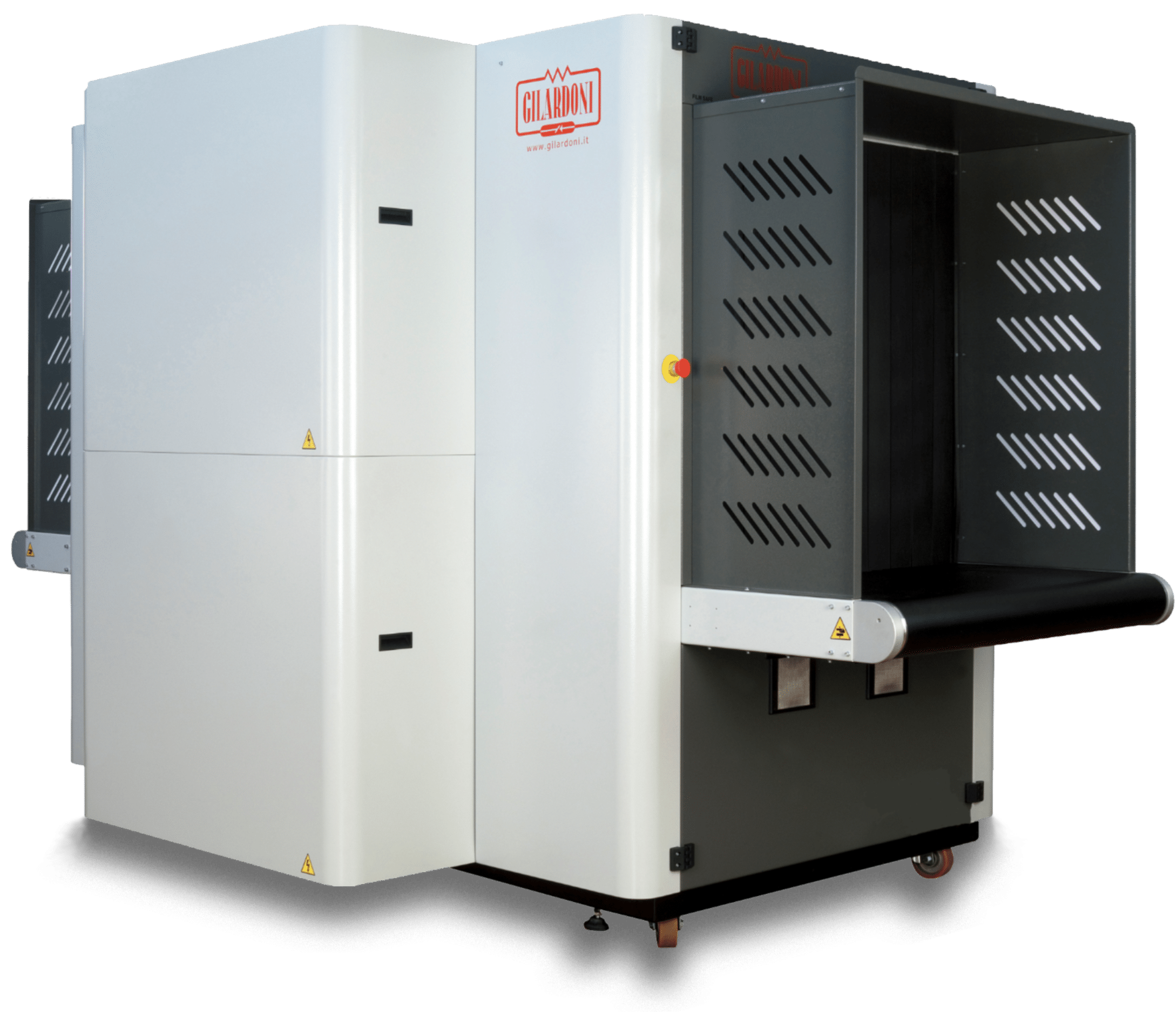

This high-performance x-ray is designed for hold baggage screening, giving dual-view images for enhanced threat detection.
Description:
New hold luggage inspection system for large baggage and medium to large parcels. New software interface, excellent performance and superior image quality. The ideal solution for aviation. Works in stand-alone or in BHS mode.
Product Features:
- Automatic archiving of work sessions in raw format, to be able to review and rework them a second time.
- Image archive chosen by the operator on HDD (up to 100.000 images) in PNG format.
- Saving images and sessions to external USB storage media.
- Self-diagnosis system showing the screen fault.
- Rays emit light signals in progress placed at the ends of the tunnel.
- Man-machine interface with time, date, 2 luggage counters (1 resettable, 1 total), duration time of the work session and operator ID.
- Manuals in pdf format that can be viewed in the software of the machine and outside.
- Import / export data with USB key.
- Setting system uses parameters, even in remote mode.
- Export / import user database and export machine operation report.
- Possibility to change the sliding direction of the images.
- Ready to use 16:9 monitors.
- Ready for connection to a printer.
Technical Specifications:
| PHYSICAL PROPERTIES | |
| Dimensions [Mm] | 338 (L) x 171,5 (W) x 197,5 (H) |
| Weight [Kg] | 1510 |
| Number Of Views | 2 |
| Number Of X-Ray Generators | 2 |
| Number Of Arrays | 2 |
| Tunnel Dimensions [Mm] | 1006 (W) x 1010 (H) |
| Max Load On Conveyor [Kg] | 200 |
| Belt Height [Mm] | 790 |
| Belt Speed [M/S] | 0,2 |
| Monitor [Nr] | 2 |
| Power Supply | 230 Vac – 50 Hz |
| Consumption [Kw] | 1,5 |
| Operating Temperature | 0 ÷ 40 °C |
| Storage Temperature | -20 ÷ 60 °C |
| Operating Humidity | 0 ÷ 95 % |
| IMAGING PROPERTIES | |
| Tube Voltage | 160 kV |
| Tube Current | 1,8 A |
| Cooling | Oil bath |
| Resolution | 41 AWG |
| Penetration | 37 mm |
| High Density Alarm | Yes |
