Designed for environments with harsh conditions,, this corrosion-resistant camera provides visual and thermal imaging to secure a property.
Product Description:

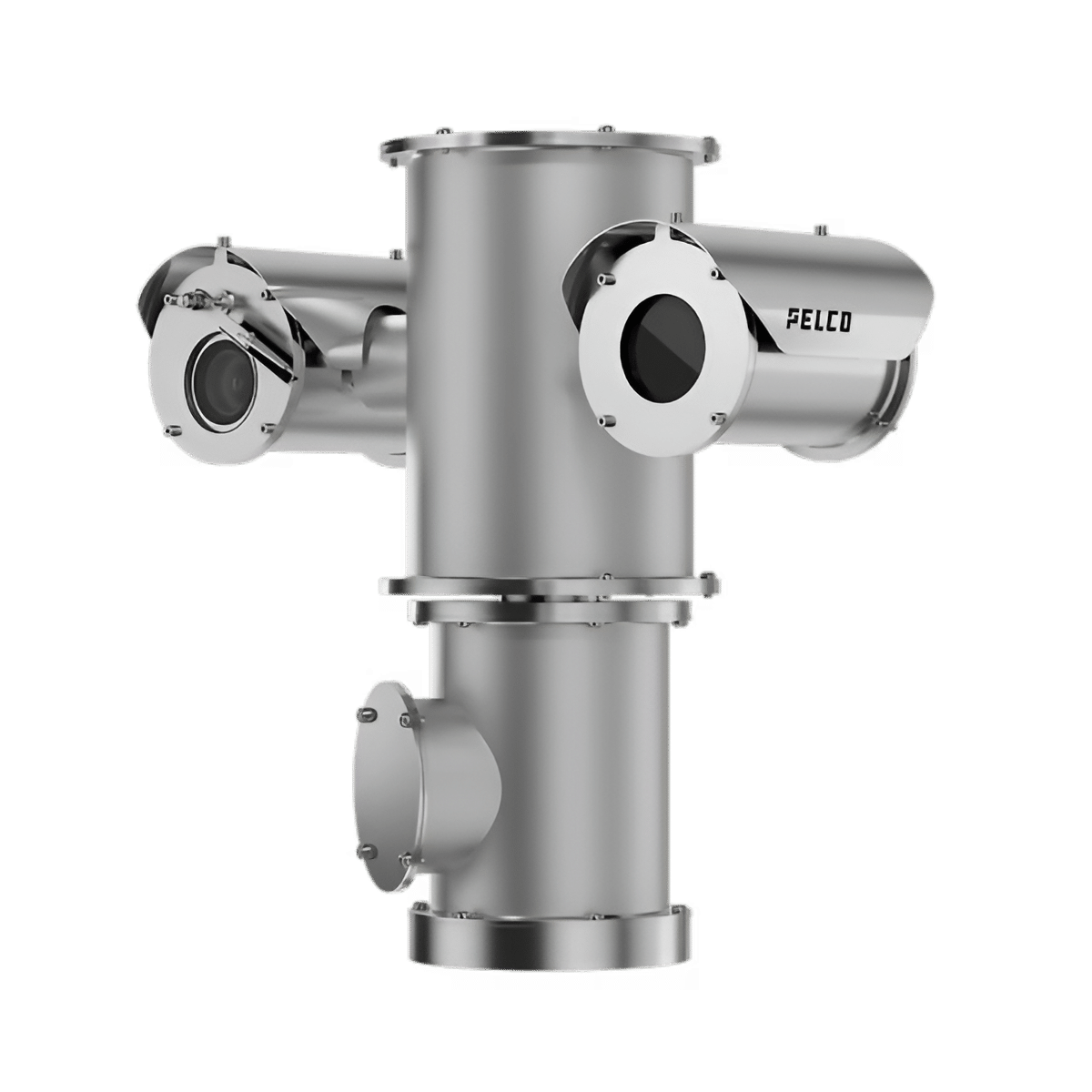

Securing rugged environments means accounting for intense snowfall, to harsh corrosion and challenging lighting conditions. The Esprit Anti-Corrosion Bispectral PTZ is a corrosion-resistant camera that combines visual and thermal imaging into a single device to enhance operational awareness. The thermal camera can accurately detect a target in most environmental conditions, while the visual camera achieves greater recognition and identification. Designed with heavy-duty stainless steel, the Esprit Anti-Corrosion Bispectral PTZ is made for rugged environments and offers maximum resistance against corrosion, making it an ideal choice for cargo ships, ports, roadways and other highly corrosive industries.
Product Features:
- Built for high corrosion resistance
- Heavy-duty stainless steel housing
- Obtained Lloyd’s Register Type Approval
- Visual & thermal views in a single device
- Run up to 4 simultaneous video streams
- Rated from ‑40° to 65°C (-40° to 149°F)
Technical Specification:
| Model Name | PTZ | BULLET |
| Part Number | ESSE1-2X40-SPT-M2ESSE1-2X40-SPT-ACESSE1-2X40-SPT-M1 | ESSE1-2X40-SBT-PAPESSE1-2X40-SBT-PAESSE1-2X40-SBT-PAW |
| Resolution (MP) | 2 MP | |
| Image Sensor | 1/2.8” progressive scan CMOS | |
| Optical Zoom | 40X | |
| Pan | 360°, endless, up to 100°/second | N/A |
| Pan | -90° to +90°, up to 100°/second | N/A |
| Max. Dynamic Range (dB) | 120 dB | |
| Max. Image Rate (50 Hz / 60 Hz) | Up to 60 fps | |
| Environmental | IP66, IP67, IP68, IP69, NEMA TS 2, Lloyd’s Register Marine type, IK10 Impact Rating (enclosure only) | IP66, IP67, IP68, IP69, NEMA TS 2 |
| AUDIO, POWER, STORAGE | ||
| Image Compression Method | H.264 and H.265 Pelco Smart Compression, Motion JPEG | |
| Audio Input/Output | None | |
| External I/O Terminals | 1 Alarm In, 1 Alarm Out, 1 Washer pump Out, 1 Remote reset In | 2 Digital Output (optional) |
| Power Source | 220-230 VAC ±10%, 0.5 A max, 50/60 Hz; 120 VAC ±10%, 1 A max, 50/60 Hz;4 VAC ±10%, 5 A max, 50/60 Hz | POE+; 24 VAC, 1.32A, 24 VDC, 0.9A |
| Onboard Storage | MicroSD/microSDHC/microSDXC slot – video speed class card required.Class V10 or better recommended. | Pre-installed 128 GBytes storage |
