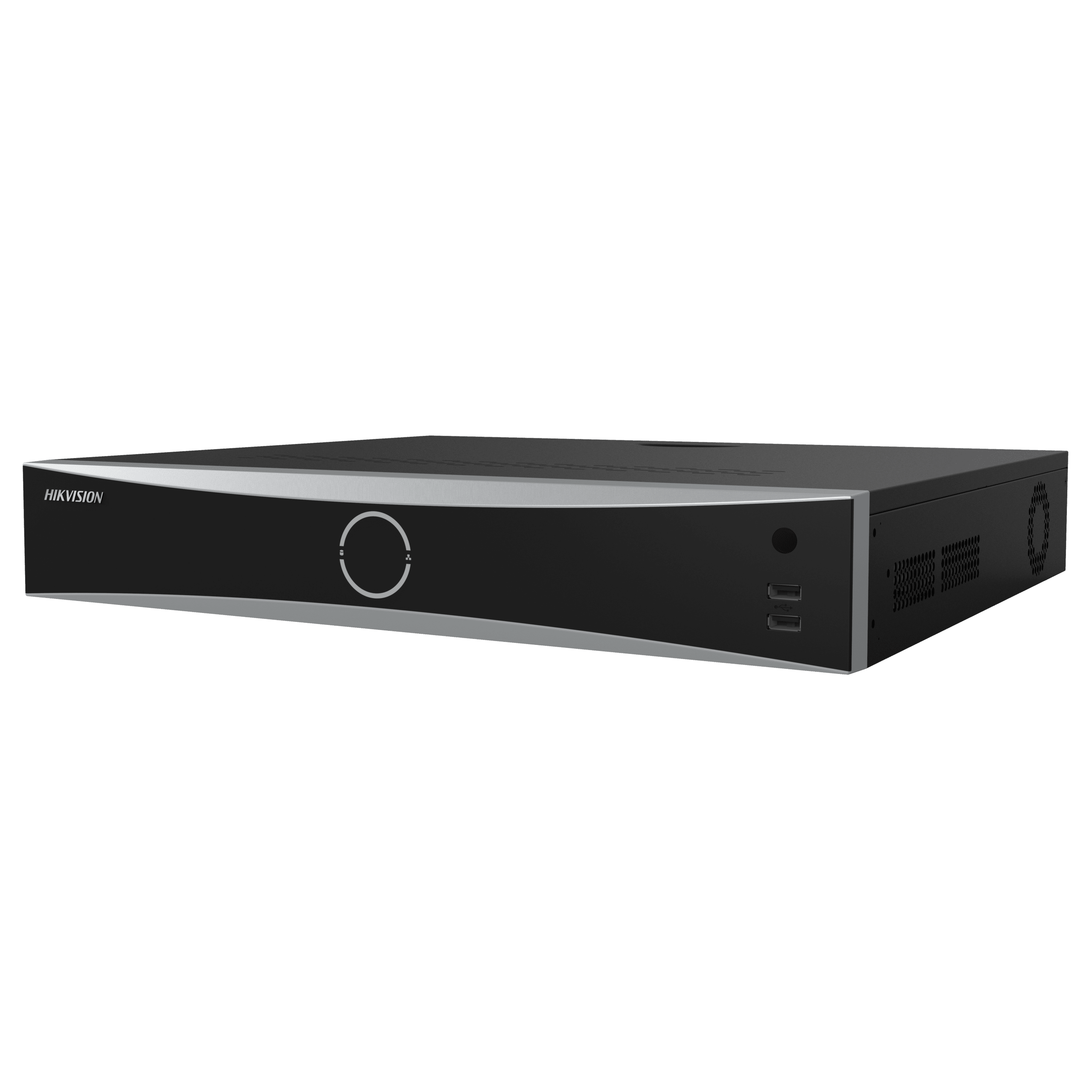

A network video-recorder with AI functionality and can offer up to 8 channel input.
Product Description:
With built-in analytics, Hikvision’s Network Video Recorders (NVRs) provide advanced artificial intelligence capabilities for any connected data stream, even those from conventional security cameras. Empowered by AI chips and high-precision algorithms, Hikvision NVRs combine high-efficiency video recording with abundant options for data analytics. These advanced NVRs bring powerful applications to a variety of users with diverse requirements.
Product Features:
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream
- Up to 4-ch facial recognition for face picture
- Up to 8-ch IP camera inputs
- Up to 16-ch 1080p decoding capability
Technical Specification:
| FACIAL RECOGNITION | |
| Facial detection andanalytics | Face picture comparison, human face capture, face picture search |
| Face picture library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
| Face picture comparison | 4-ch face picture comparison alarm |
| Performance of facial detection and analytics | 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| MOTION DETECTION 2.0 | |
| Human/vehicle analysis | 8-ch |
| PERIMETER PROTECTION | |
| Human/Vehicle analysis | Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
| VIDEO AND AUDIO | |
| IP video input | 8-ch |
| Up to 12 MP resolution | |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 256 Mbps |
| HDMI output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, |
| Video output mode | HDMI/VGA independent output |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| DECODING | |
| Decoding format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Capability | 16-ch@1080p (30 fps) |
| Dual stream recording | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| NETWORK | |
| Remote connections | 128 |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS |
| Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 120 W |
| Supported standard | IEEE 802.3 af/at |
| AUXILIARY INTERFACE | |
| SATA | 2 SATA interfaces supporting hot-plug |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm in/out | 4/1 |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| GENERAL | |
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption (without HDD) | ≤ 15 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Chassis | 1U chassis |
| Dimension (W × D × H) | 385 × 315 × 52 mm ( 15.2″× 12.4″ × 2.0″) |
| Weight (without HDD) | ≤ 2.7 kg (6.0 lb) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
