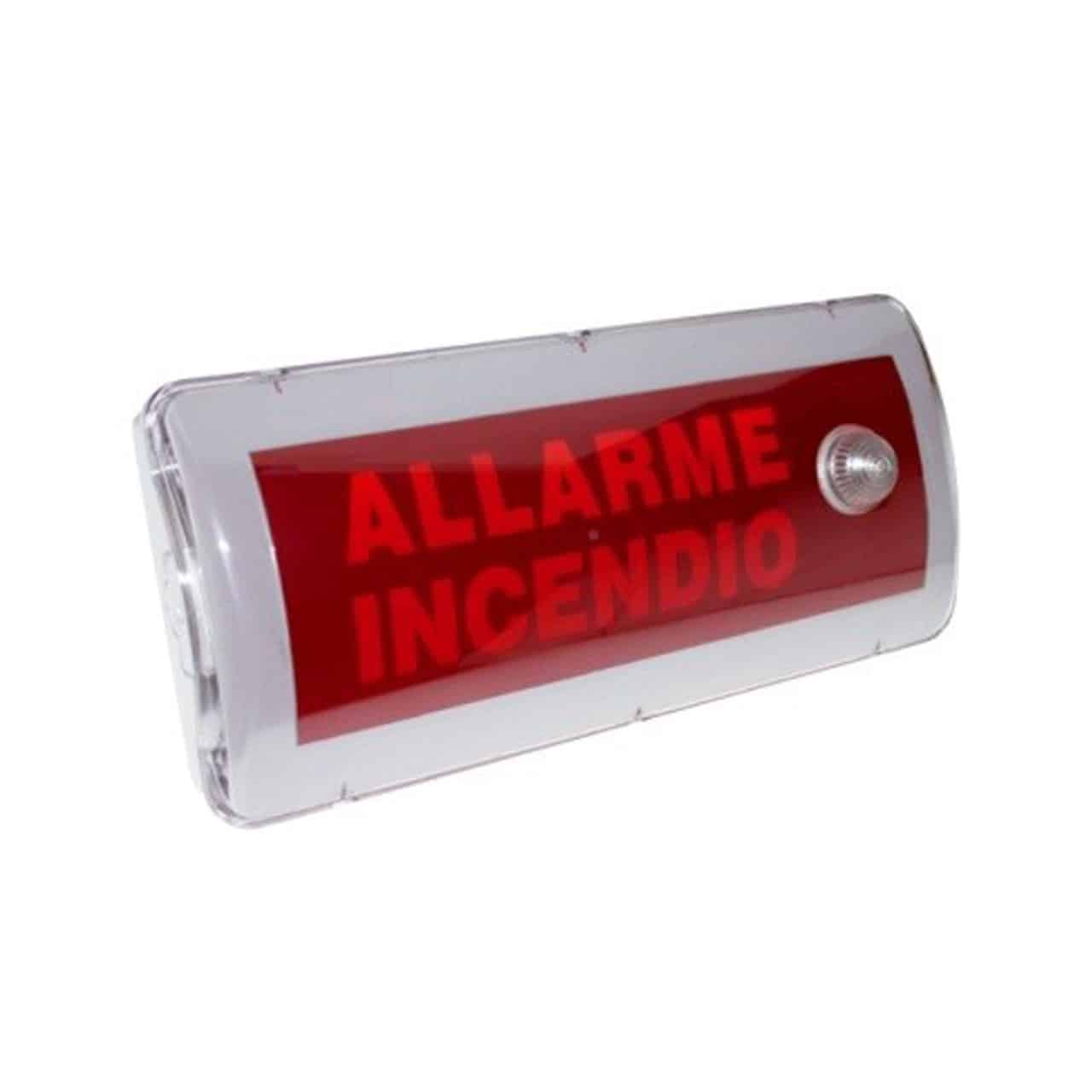

The DOA series indicator lights are signaling devices and acoustic warning by buzzer.
Description:
The DOA series indicator lights are signaling devices and acoustic warning by buzzer. Due to their low consumption and high visibility, they are ideal for informing the user about the actions of the extinguishing system, fire detection system and detection of toxic gasses (carbon monoxide).
Product Features:
- Power supply 24 V
- Low current consumption
- EN 54-3 and EN 54-23 approved (depends on the model)
Technical Specifications:
| INDICATOR LIGHT | DOA FJ/CPD | DOA K | DOA K/WP |
| Operating voltage | From 10.8 to 28 VDC | From 24 to 28 VDC | From 24 to 28 VDC |
| Alarm current consumption | 110 mA | 55 mA | 55 mA |
| Volume at 1 m | From 81 to 87 dB | 91,7 dB | 91,7 dB |
| Frequency | 3050 Hz | 2900 Hz | 2900 Hz |
| CONNECTIONS | |||
| 2 x 1,5 mm2 twisted | |||
| ENVIRONMENT | |||
| Operating temperature | From -10C to +55°C | From -10C to +55°C | From -10C to +55°C |
| Relative humidity | 95% without condensation | 95% without condensation | 95% without condensation |
| IP Index | IP21C | IP21 | IP54 |
| PHYSICAL FEATURES | |||
| Size | 320 mm x 140 mm x 68 mm | 331 mm x 150 mm x 68 mm | 331 mm x 150 mm x 68 mm |
| Material | ABS and polycarbonate | ABS and polycarbonate | ABS and polycarbonate |
| APPROVALS | |||
| EN 54-3 and EN 54-23 (DOA FJ/CPD only EN 54-3) | |||
| Certificate number: 1328-CPR-0615 | Certificate number: 1328-CPR-0725 | Certificate number: 1328-CPR-0726 | |
