A budget-friendly network switch that has a plug-and-play feature for easier use.
Product Description:

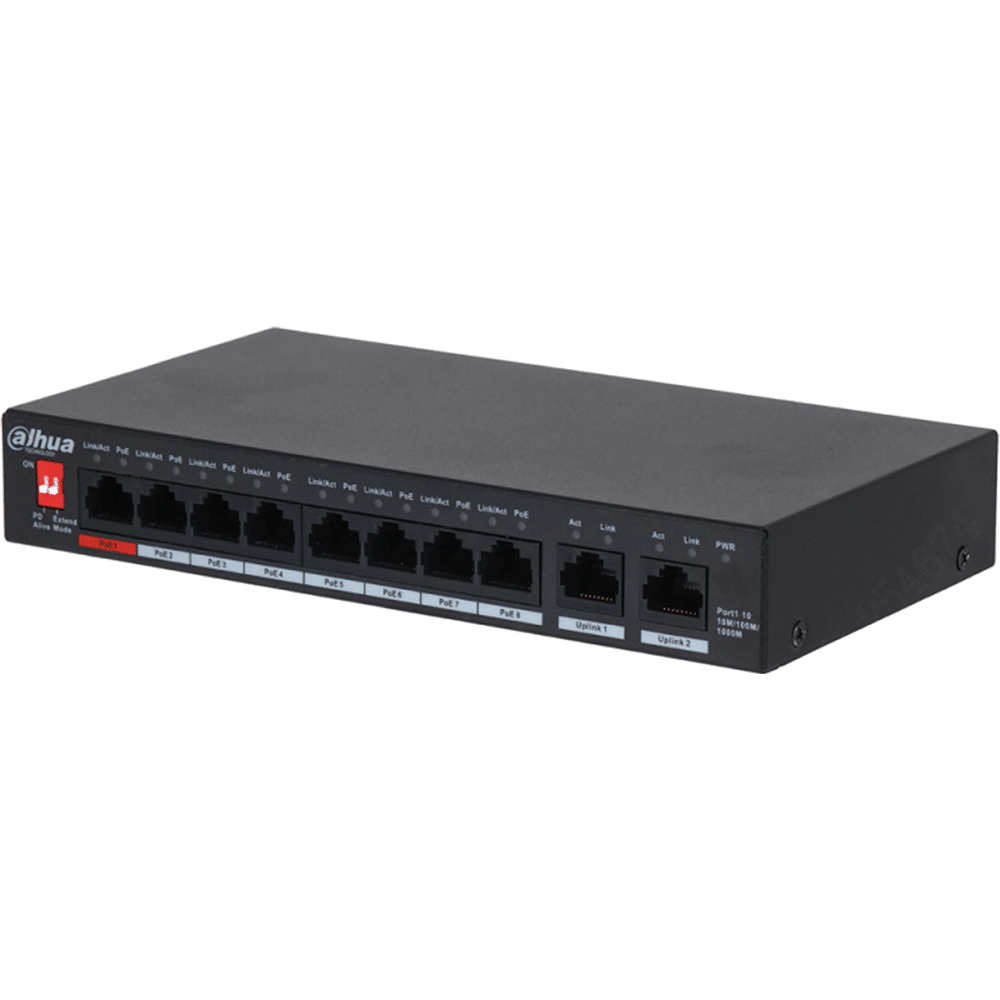

Quickly expand your business’s network capacity to support powered devices, such as IP security cameras and access points, with the 8-Port Gigabit PoE-Compliant Unmanaged Network Switch from Dahua Technology. This budget-friendly network switch features eight PoE-complaint Gigabit Ethernet ports, one of which can supply up to 90W of power to advanced devices while the rest support 30W. Additionally, this plug-and-play desktop switch integrates into your network through its two RJ45/SFP Gigabit combo uplink ports without requiring complex configuration. Its 20 Gb/s switching capacity, a 14.88 forwarding rate, and 1.5 Mb packet buffer help to provide smooth and reliable data transfers and high-definition video.
Product Features:
- 8 x Gigabit Ethernet Ports
- 7 x PoE+ Compliant Ports (30W)
- 1 x PoE++ Compliant Port (90W)
- 2 x Gigabit RJ45 / SFP Combo Uplinks
- 20 Gb/s Switching Capacity
- 14.88 Forwarding Rate
- Desktop Design
- Plug-and-Play
Technical Specification:
| Model | DH-PFS3010-8GT-96 |
| Description | 8-port PoE 2.0 Gigabit Switch |
| Port Configuration | GbE PoE Ports + 2 GbE Combo (RJ45) Uplinks |
| SFP Optical Ports | – |
| PoE Standard | PoE (802.3af),PoE+ (802.3at), Hi-PoE,PoE++ (802.3bt) |
| PoE Budget | 96 W |
| PoE Watchdog | Supported |
| Long Distance PoE Transmission | Yes (820 ft) |
| Intelligent PoE Management | Supported |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Memory | 1.5 Mb |
| Mac Table Size | 4K |
| VLAN | – |
| Link Aggregation | – |
| Spanning Tree | – |
| Management | – |
| Lightning Protection | Common Mode 6 kVDifferential Mode 4 kV |
| Working Temperature | 14° F to 131° F(-10° C to 55° C) |
| Dimensions | 190 mm × 100 mm × 30 mm(7.5 in. × 3.9 in. × 1.2 in.) |
