Designed for fast transmission of data, this network switch can accommodate up to 8 devices.
Product Description:

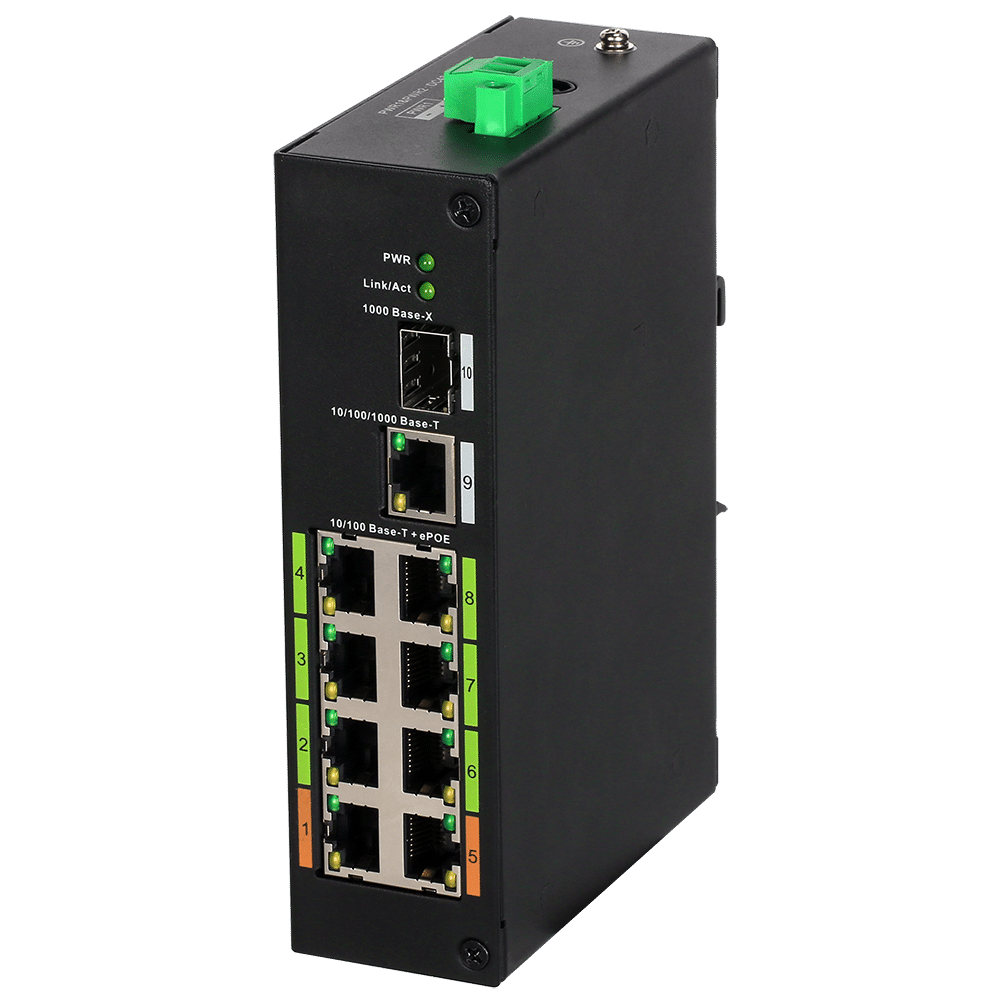

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long
distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Product Features:
- Supports long distance PoE transmission up to 800m with ePoE technology of Dahua.
- Layer-two ePoE switch.
- MAC auto study and aging, MAC address list capacity is 8K.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards.
- Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standard.
- Industrial wide temperature design.
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10.
Technical Specification:
| Model | DH-IS2110-8ET-120 |
| Description | 8-port ePoE Fast EthernetSwitch |
| Port Configuration | 8 FE PoE+1 GE |
| SFP Optical Ports | 1 GE SFP |
| PoE Standard | PoE (802.3af),PoE+ (802.3at), Hi-PoE |
| PoE Budget | 120 W |
| PoE Watchdog | – |
| Long Distance PoE Transmission | Yes (2625 ft) |
| Intelligent PoE Management | – |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 2.75 Mb |
| Mac Table Size | 4K |
| VLAN | – |
| Link Aggregation | – |
| Spanning Tree | – |
| Management | – |
| Lightning Protection | Common Mode 4 kVDifferential Mode 2 kV |
| Working Temperature | -22° F to 149° F(-30° C to 65° C ) |
| Dimensions | 150 mm × 100 mm × 42 mm(5.91 in. × 3.94 in. × 1.65 in.) |
