This surveillance camera can provide reliable image capture with this full portfolio of solutions.
Product Description:

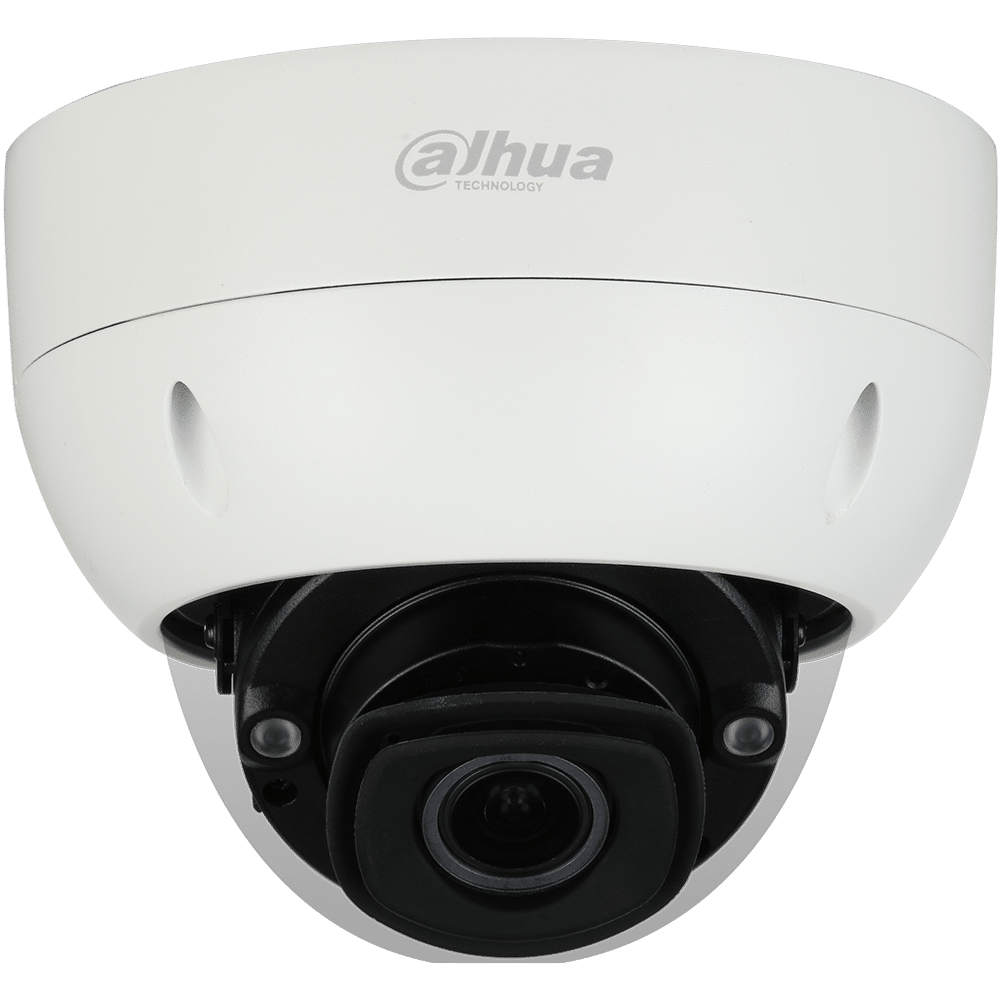

With an advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, and liveness. This series camera has ultra starlight night vision effect, and works with ultra-low
stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).
Product Features:
- 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520)@50/60 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built-in IR LED, and the max. illumination distance is 40 m.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
- Supports P-Iris, the camera can control the iris more precisely for better image effect.
- Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 256 G Micro SD card.
- 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
- IP67, IK10 protection grade.
- 12 VDC power output, max. current 165 mA , easy for installation
- Anti-corrosion coating (optional).
Technical Specification:
| Model | DH-IPC-HDBW7442H-Z |
| Innovative Features | UltraSeries, WizMind |
| Image Sensor | 1/1.8-in. 4MP CMOS |
| Lens | 2.7 mm to 12 mm, Motorized |
| Minimum Illumination | Starlight+Color: 0.001 lux at F1.20 lux at F1.2 (IR on) |
| Maximum IR Distance | 164 ft (50 m): Bullet131 ft (40 m): Dome |
| Video Compression (Main Stream) | Smart H.265+, H.265, Smart H.264+,H.264, H.264B, H.264H, (MJPEG substream) |
| Maximum Resolution | 4MP (2688 x 1520) |
| Intelligent Video | Analytics+(People Counting, Perimeter Protection,Image Attribute Extraction) |
| Audio In/Out | 1/1 |
| Memory Slot | Micro SD,Max 256GB |
| Alarm In/Out | 3/2 |
| Environmental Protection | IP67, IK10 |
| Working Temperature | -40° F to 140° F(-40° C to 60° C) |
| Power | 12 VDC, 24 VAC, or PoE (802.3af, Class 0) ePoE, Max <17.3 W: BulletMax <16.7 W: Dome |
