Designed for outdoor use, this 4K surveillance camera has a 40x optical zoom and Analytics+ for real-time face recognition.
Product Description:

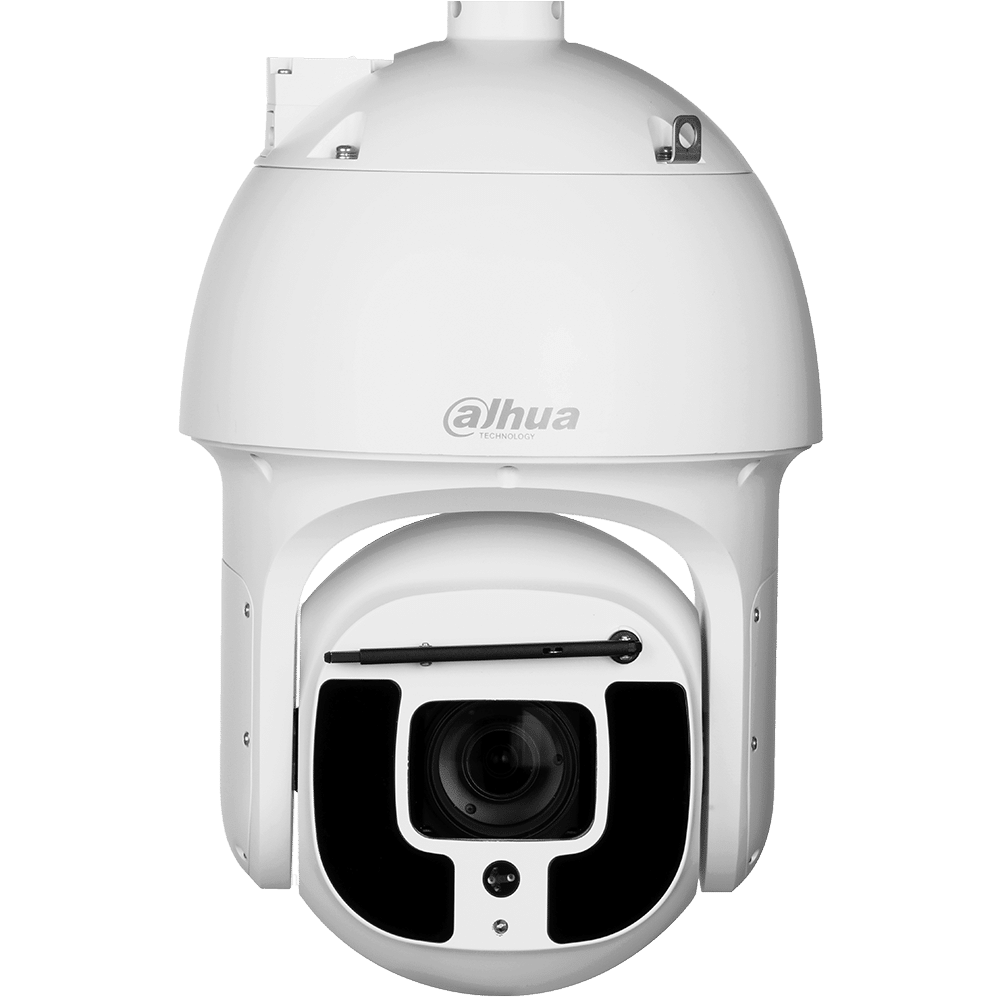

The 4K IR PTZ Dome camera features a 1/1.8-in STARVIS™ CMOS imager with a 40x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera offers Analytics+ functions at the edge – performing complex real-time face recognition and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features
Product Features:
- 1/1.8-in. 8 MP Progressive Scan STARVIS™ CMOS Sensor
- Powerful 40x Optical Zoom Lens
- Smart H.265+ and Smart H.264+ Dual Codecs
- 8 MP at 30 fps Maximum Resolution
- Analytics+ Functions — Face Recognition and Perimeter Protection
- Starlight Technology for Ultra-low Light Sensitivity
- Maximum IR Distance up to 500 m (1640ft)
- Predictive Focus Analysis (PFA) Technology
- Integrated Smart Wiper
- Intelligent Video System with Auto-tracking
- Supports Hi-PoE
- IP67 Environmental Protection
- Wall Mount and Power Adapter (24 VAC, 3 A) Included
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Technical Specification:
| Model | DH-IPC-PSDW81642M-A360 |
| Innovative Features | UltraSeries, WizMind |
| Image Sensor | 1/2.8-in. 8MP STARVISTM CMOS |
| Lens | 5.6 mm to 223 mm(40x Optical Zoom) |
| Minimum Illumination | Enhanced StarlightColor: 0.005 lux to F1.40 lux to F1.4 (IR on) |
| Maximum IR Distance | 1640 ft (500 m) |
| Video Compression (Main Stream) | Smart H.265+, H.265,Smart H.264+, H.264,(MJPEG substream) |
| Maximum Resolution | 8MP (3840 x 2160) |
| Pan/Tilt/Zoom | 300 Presets,Pan: 0° to 360° endless;Tilt: -30° to 90°, Auto Flip 180° |
| Preset Speed | Pan: 240° /s; Tilt: 120° /s |
| Intelligent Video | Scene Change, Abandoned/MissingObject, Perimeter Protection, FaceDetection**, Auto-tracking |
| Audio In/Out | 1/1 |
| Memory Slot | Micro SD,Max 128GB |
| Alarm In/Out | 7/2 |
| Environmental Protection | IP67 |
| Working Temperature | -40° F to 158° F(-40° C to 70° C) |
| Power | 36 VDC, 2.23A ±25% orHi-PoEMax 30 W, 48 W with IR on |
