A comprehensive imaging system for any type of fingerprint on any surface or background, ensuring that maximum detail is revealed.
Product Description:

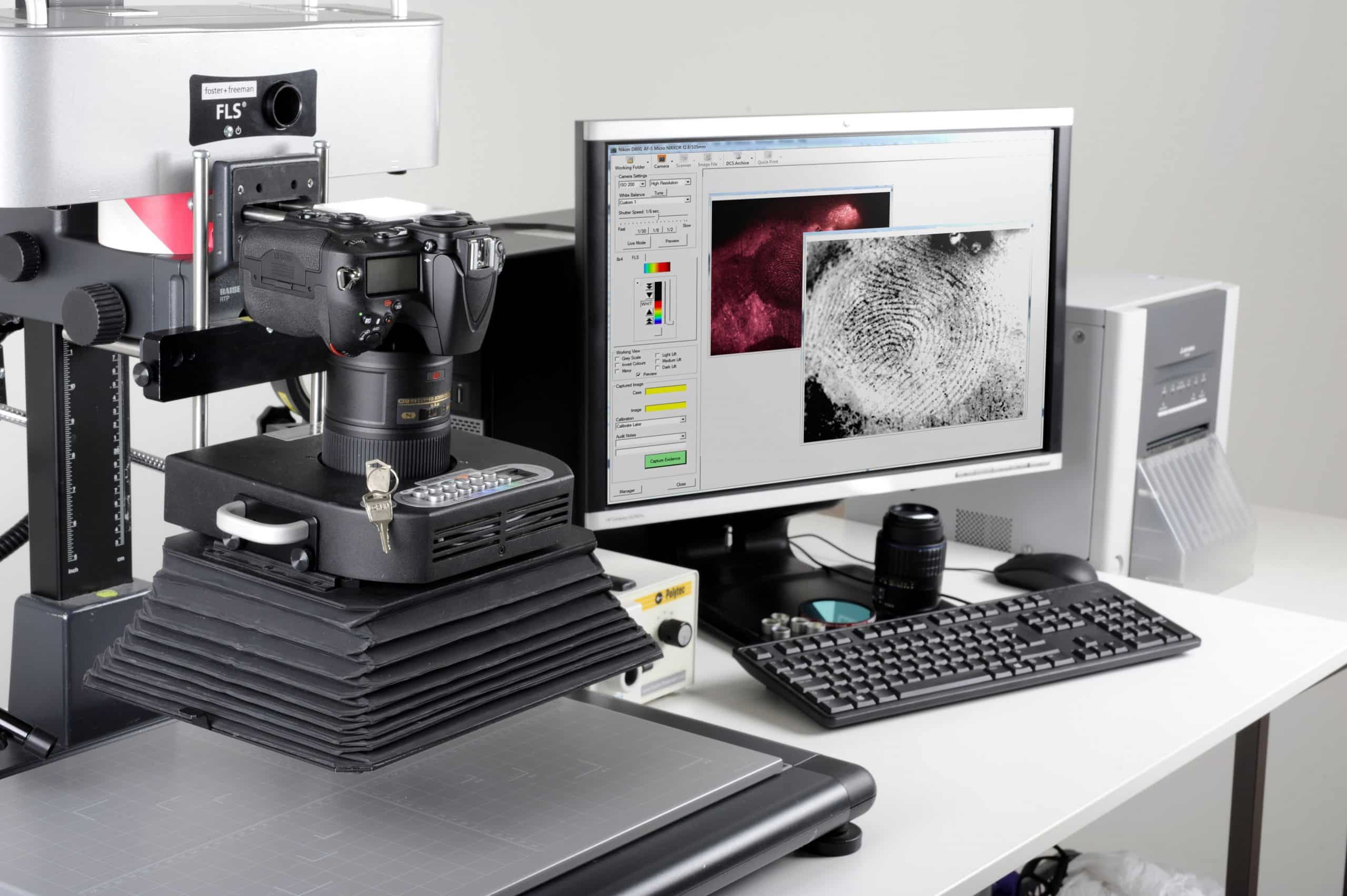

DCS 5 is a comprehensive imaging system for the detection, capture and enhancement of almost any type of fingerprint on any surface or background to ensure that maximum detail is revealed. Precise wavebands of illumination from UV through the visible to IR are provided to improve the visualization of every type of fingerprint whether it be latent, contaminated or chemically treated.
Product Features:
- Fluorescence Imaging
- Infrared Imaging
- Reflected longwave UV Imaging
- Cylindrical Surface Unwrapping
- Digital Enhancement
- Image Validation & Audit Trail
- Interactive Guidance
- Comparison & AFIS Search
Technical and System Specification:
| PRO Image Capture | Nikon D6– Custom-modified camera- 20.8 million effective pixels- 35.9 x 23.9mm CMOS sensor 105mm Macro Lens Kit– For visible imaging- Circular polarizing filter- Visible pass rilter- Filter step ring Infrared Imaging Filters– 715nm IR imaging filter- 780nm IR imaging filter- 850nm IR imaging filter |
| PRO Illumination | Crime-lite 8×4 MK2Multi-waveband Ring Light- 32x high intensity LEDs- White, UV, Violet, Blue, Blue/Green, Orangeand Red illumination- Set of 12 slot-in fluorescence viewing filters- Filter storage case- Ambient light shielding lens bellows Halogen Light Source– 150W halogen lamp- Variable dimmer control Fibre Optic Light Guide– 4” Ring Light- Backlight- Twin arm gooseneck- Dark field ring light |
| DCS5 System Essentials | Pro-Grade Copy Stand+ Ring Light Mount+ Camera Filter Pouch+ Camera Filter Step-ring+ DCS Photography Pack DCS Light Guide Clamp Set+A selection of clamps and flexible arms for the positioning of light guides Desktop PC+ 32” 4K UHD Monitor+ Photo Printer DCS 5 Software+ Image Pro Analyser+ VeriData iDem+ DCS Wizard |
| PRO Image Capture | ✓ Nikon D6✓ 105mm Macro Lens Kit✓ Infrared Imaging Filters |
| PRO Illumination | ✓ Halogen Light Source✓ Fibre Optic Light Guide✓ Crime-lite 8×4 MK2 |
| DCS5 System Essentials | ✓ Pro-Grade Copy Stand✓ DCS Light Guide Clamp Set✓ Desktop PC✓ DCS 5 Software |
| Expert Image Capture | 85mm Shift/Tilt Lens Kit– Manual focus lens with shift and tilt control- Circular polarizing filter- Visible pass filter- Filter step-ring* Requires macro extension tubes 60mm UV/Vis/IR Lens Kit– Macro lens with 310-1100nm transmission- 330-385nm bandpass filter- Circular polarizing filter- Visible pass filter- Filter step-ring* Requires macro extension tubes |
| EXPERT Illumination | Crime-lite 8 x 4 MK 4 N-IR Imaging Ring Light– 32x high intensity LEDs- Blue, Red and N-IR LED illumination- Set of 4 slot-in fluorescence viewing filters- Filter storage case- Sample of fpNatural1 IR fingerprint powder- Sample of fpNatural2 NIR fingerprint powder Crime-lite 82S UV Light Source– 16x 365nm LED illumination Line Light Attachment– For use with FLS or Halogen Light Source. Forensic Light Source (FLS)– 100W halogen lamp- 400-1000nm continuous bandpass filter |
