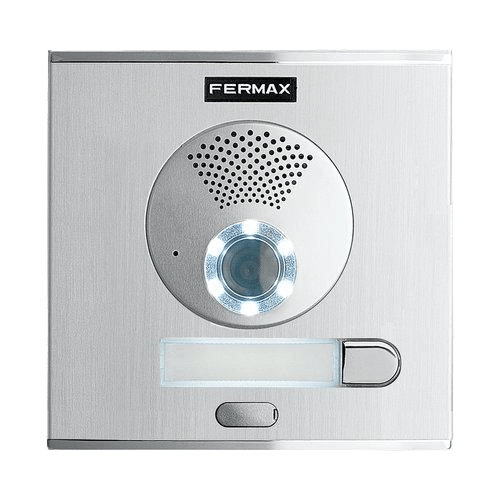

A compact and stylish outdoor panel for video door entry systems. It is easy to install and allows for two-way, crystal clear communication within the property.
Product Description:
The CityLine Outdoor Panel is a series of robust and aesthetically pleasing access control solutions for buildings. Made from anodized aluminum with a chrome zamak finish, it is weather-resistant and durable. It integrates audio and video functions, offering compatibility with existing City Classic models. The panel is customizable with card holders for resident names and illuminated for visibility in low-light conditions. It requires a separate flush or surface box and can be combined with multiple panels using separators.
Technical Specification:
| Video | Sensor: 1/3″ color CMOS.Effective pixels > 340K. (camera captures 720×480)Minimum external lighting: 0 lux. Since it has LEDs, no additional lighting is required.S/N >45dB.Frame rate 25 fps.Resolution > 368×288 pixels.Video Codec: H264 Highline ProfileAuto iris.Auto BLC.Viewing angle 100º horizontal, 80º vertical.Fisheye correction.Color night vision through white LEDs.Pan & Tilt digital zoom |
| Series 1 Plate | Plate measurements: 130×128 mm (width-height).Built-in box measurements: 115x114x45 mm (width-height-depth).Surface box measurements: 130x128x33 mm (width-height-depth). |
| Power | 18-24 Vdc |
| Consumption: | at rest: 240 mA.active audio: 560 mA. |
| IPK-437 | |
| Audio Power | Audio power in the home-street direction: 2WAudio power in the street-home direction: 0.15WAdjustable volume in both directions |
| Technology: | DUOX |
| Weight: | 0.687 kg |
| Measures of the packed product: | 7,3×14,8×13,8 cm |
| EAN 13: | 8424299407081 |
