An advanced tray handling system that can be perfectly integrated with X-ray baggage screening machines with the aim of facilitating the work of airport security staff.
Description:

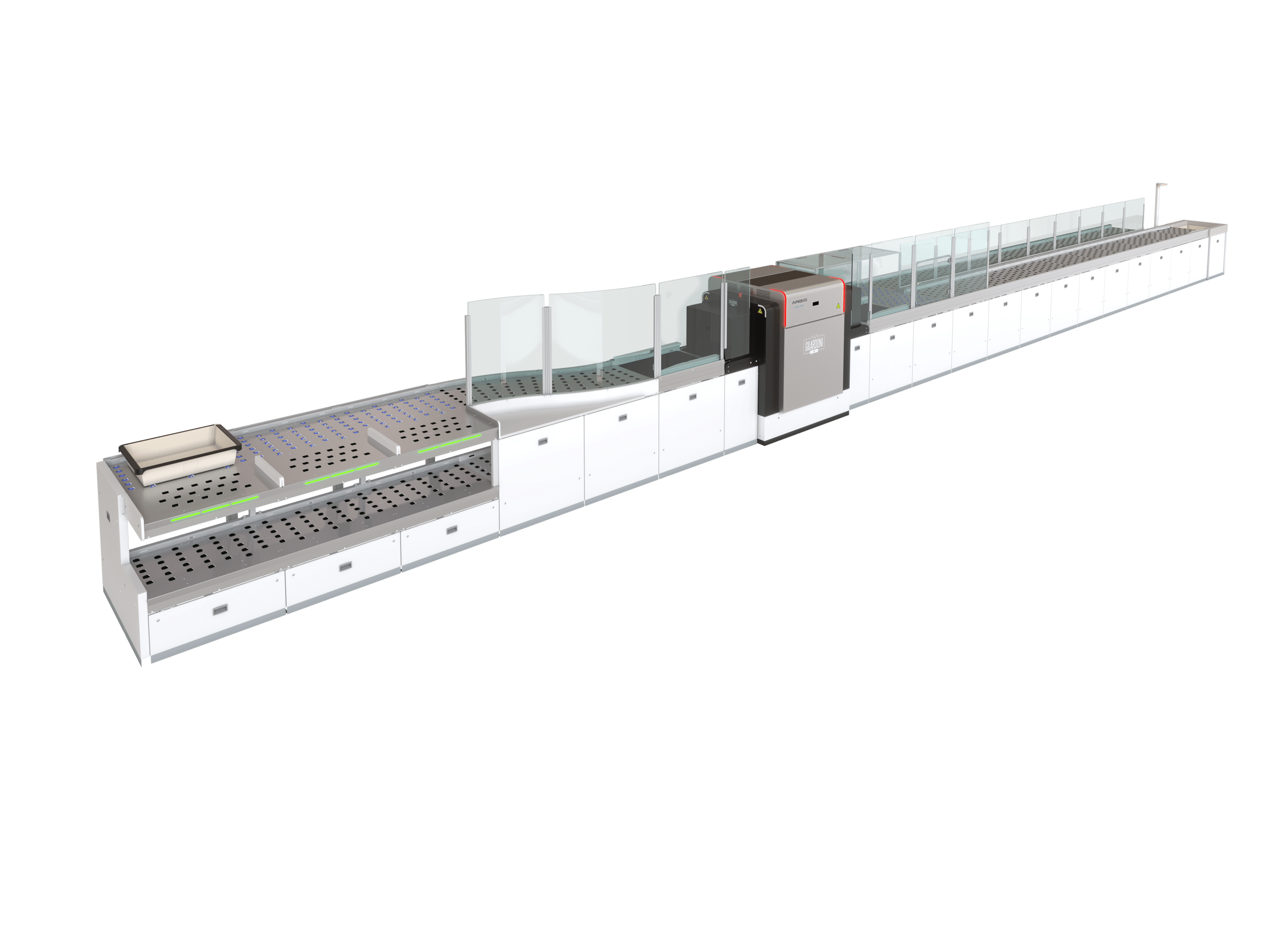

TRS BREVA is an advanced tray handling system that can be perfectly integrated with X-ray baggage screening machines. The high level of automation and modularity make it ideal for the most modern airport environments, facilitating and speeding up security checking. The moving trays are always tracked thanks to a series of RFID antennas integrated in the structure. BREVA is completely customizable and can be adapted to meet all needs.
Product Features:
- RFID Tracking
- Modularity
- Ergonomic divesting station
- Lightweight materials for easy modules handling and low load impact
- Adaptable speed
- Empty trays camera
Technical Specifications:
| GENERAL TECHNICAL DATA | |
| Dimensions | Height: customizableLength: 840 mm (Single module)Width: 708 mm (Max) |
| Weight (standard module) | 25 kg |
| Max load capacity (standard module) | 50 kg |
| Max Width capacity | 620 mm |
| Speed | 0,15 – 1 m/s |
| Power supply | 230 Vac; 50/60Hz |
| Max electrical power consumption | 2 kW |
| Max incline | 20° with belt |
| ENVIRONMENTAL COMPLIANCE | |
| Operational temp. | 0°C – 40°C |
| Humidity | 0-95% without condensation |
| Noise level | < 70 dB |
| ROLLERS | |
| Type | Gilardoni plastic high grip rollers |
| Diameter | 50 mm |
| Material | Plastic |
| DIVERTER | |
| Type | Omnidirectional wheels |
| Movement | Transversal (no height changes) |
| MOTORS | |
| Type | BLCD transmission ratio 1:36 |
| Voltage | 24 Vdc |
| Max speed | 145 RPM |
| PHOTOCELLS | |
| Type | REFLEX O6P203 |
| Voltage | 10 – 30 Vdc |
| IP rating | IP 67 |
