A pan-tilt-zoom surveillance camera with 36x optical zoom and extreme Wide Dynamic Range for clearer imaging.
Product Description:

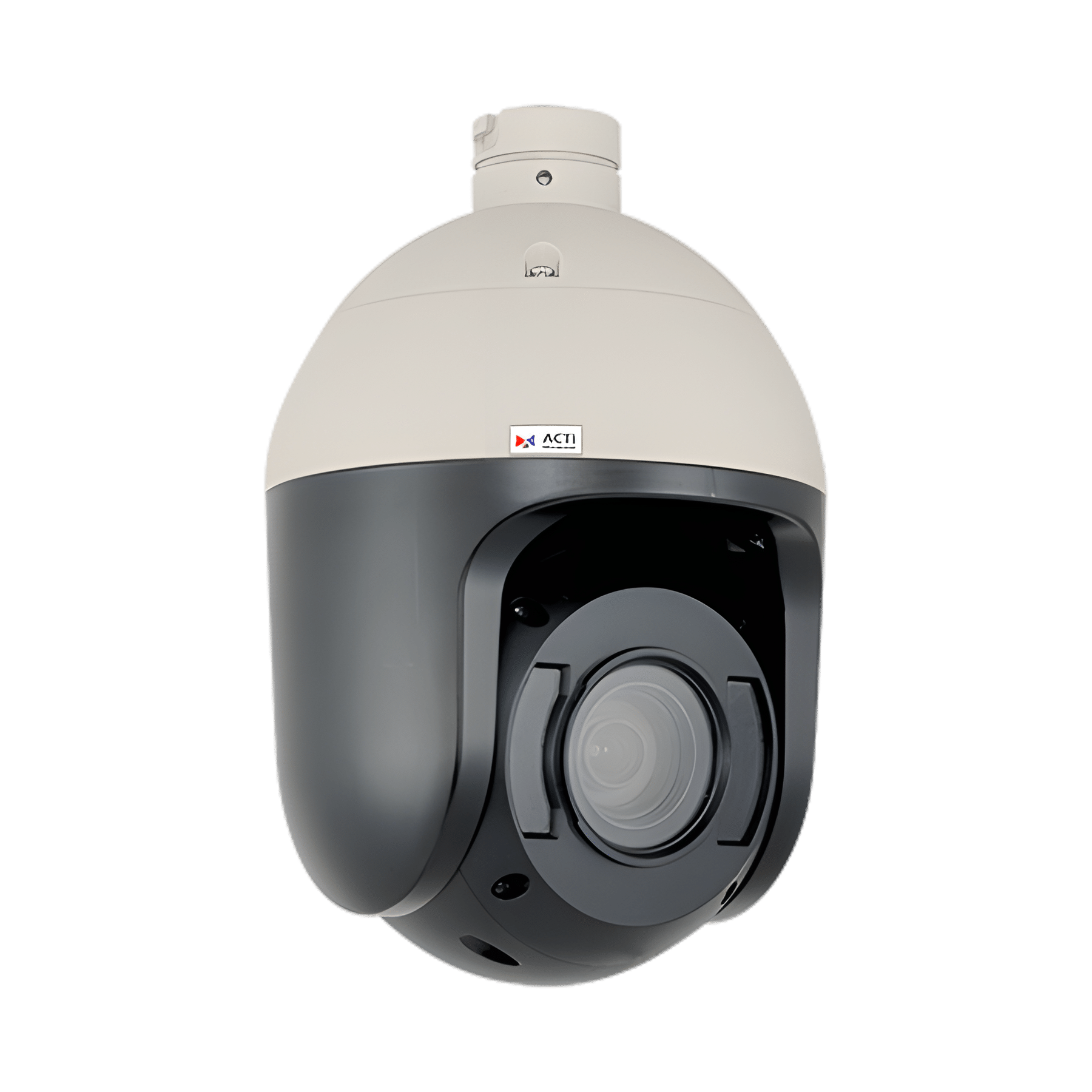

The B928 5MP Outdoor PTZ Network Speed Dome Camera from ACTi features a 4.6-165.6mm varifocal lens for 36x optical zoom. Utilizing a 1/2.9″ progressive scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944. The camera uses H.264, H.265, and MJPEG compressions to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. It also features a mechanical IR cut filter and IR LEDs for night vision up to 492′. Image enhancements include extreme WDR, white balance, brightness, contrast, saturation, sharpness, AGC, 2D & 3D digital noise reduction, flickerless, defogging, and digital image stabilization.
Product Features:
- Image flip and mirror
- 32 configurable 3D privacy masks
- Built-in dehumidifier
- Scratch-resistant and water-repellent lens glass
Technical Specification:
| KEY SPECS | |
| Image Sensor | 1.3”-Type CMOS |
| Focal Length | 4.6 to 165.6mm |
| Field of View | Horizontal: 64.3 to 2.04°Vertical: 39.62 to 1.62° |
| Pan/Tilt | ProgrammedPan: 360° (-180 to 180°) at 300°/s Tilt: 220° at 150°/s |
| Built In Microphone | No |
| IMAGING | |
| Number of Lenses | 1 |
| Image Sensor | 1.3”-Type CMOS |
| Sensor Resolution | Effective: 5 Megapixels |
| IR Cut Filter | Yes Mechanical |
| Day/Night | Yes |
| EXPOSURE CONTROL | |
| Minimum Illumination | 0.05 Lux (Color)0.005 Lux (Black and White) |
| LENS | |
| Focal Length | 4.6 to 165.6mm |
| Optical Zoom Ratio | 36x |
| Field of View | Horizontal: 64.3 to 2.04°Vertical: 39.62 to 1.62° |
| VIDEO | |
| Automatic Gain Control | Yes |
| Max IP Streaming | via RJ452592 x 1944 up to 30.00 fps |
| Multi-View Streaming | Yes, 3 Streams |
| CONTROL | |
| Pan/Tilt | ProgrammedPan: 360° (-180 to 180°) at 300°/s Tilt: 220° at 150°/s |
| NETWORKING | |
| Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | ARP, DDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| INTERFACE | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Audio I/O | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | No |
| SENSORS & ALARMS | |
| Event Trigger | Yes |
| Event Action | Notification, Alarm |
| GENERAL | |
| Impact Resistance | Impact-Resistant (IK10) |
| Operating Conditions | -40 to 131°F / -40 to 55°C at 10 to 85% Humidity |
| Startup Temperature | -40 to 131°F / -40 to 55°C |
| Illumination | IR LEDs up to 98.4′ / 30 m |
