Designed to accommodate up to 16 channels, this card reader can connect up to 16 lift levels.
Product Description:

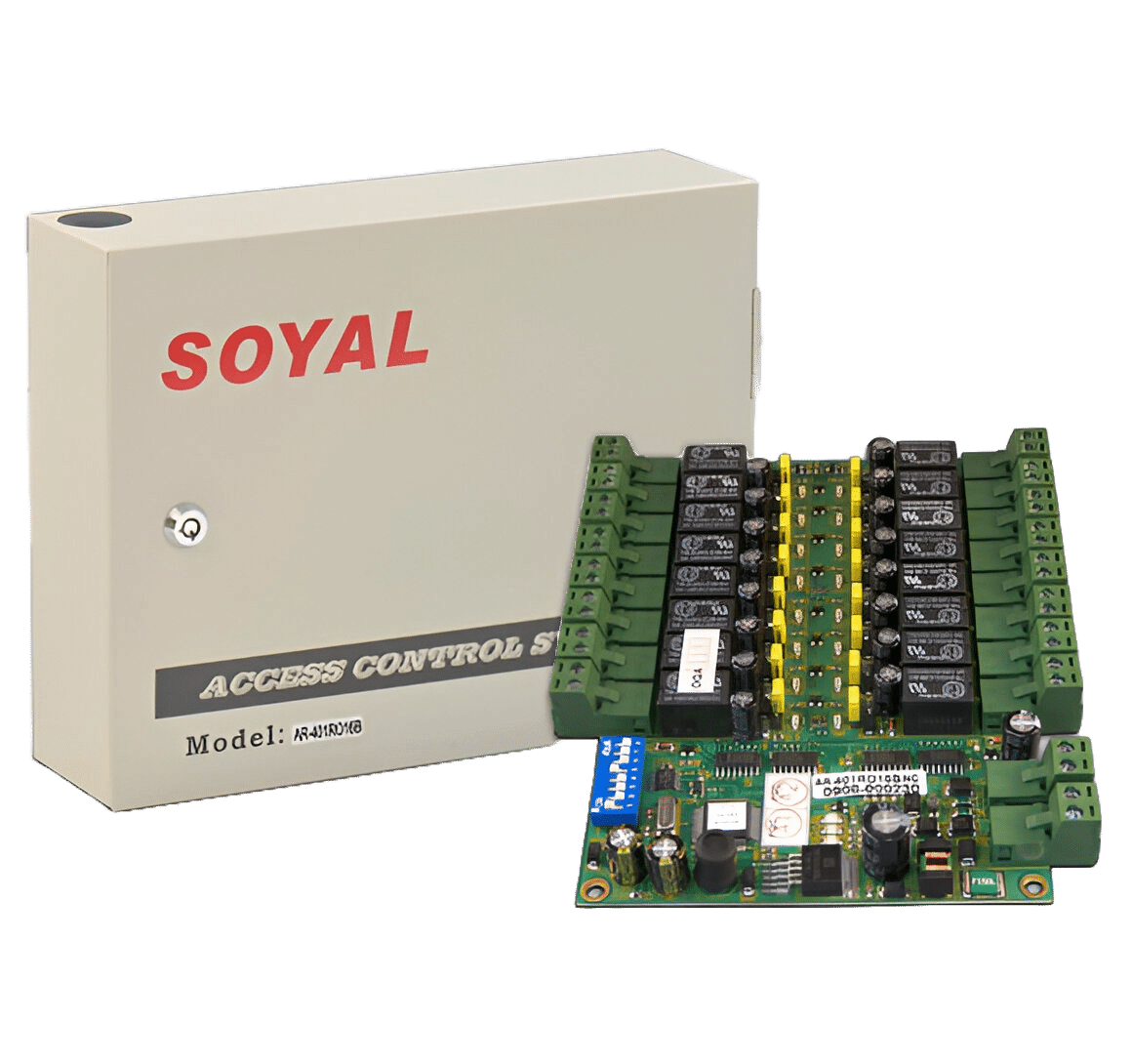

AR401R016 is a 16 channel relay interface to connect up to 16 lift levels. Multiple AR401R016 can be looped together via RS485 bus to achieve more than 16 floors. All relays are NC by default. Upon power up, all relay will become NO. Card access reader will instruct AR4016R016 lift relay to open designated relay depending on the floor allowed for access permission.
Product Features:
- Communication: RS-485
- 16 form C relay output
- 16 com. were dispatched 16 relay
- N.O./N.C. select via jumper
Technical Specifications:
| Power supply | 10-24VDC |
| Power consumption | 8W |
| Communication interface | RS-485 |
| Data transfer rate | RS-485: 9600 bps/ 19200 bps (N, 8, 1) |
| Channel | 16 form C relay output |
| Indicator | Power; TX/RX; relay (on/off) |
| Real time clock | No |
| Housing material | metal |
| Dimension (mm) | 180 (L) x 231 (W) x 62 (H) |
| Weight (g) | 1780+- 10 |
