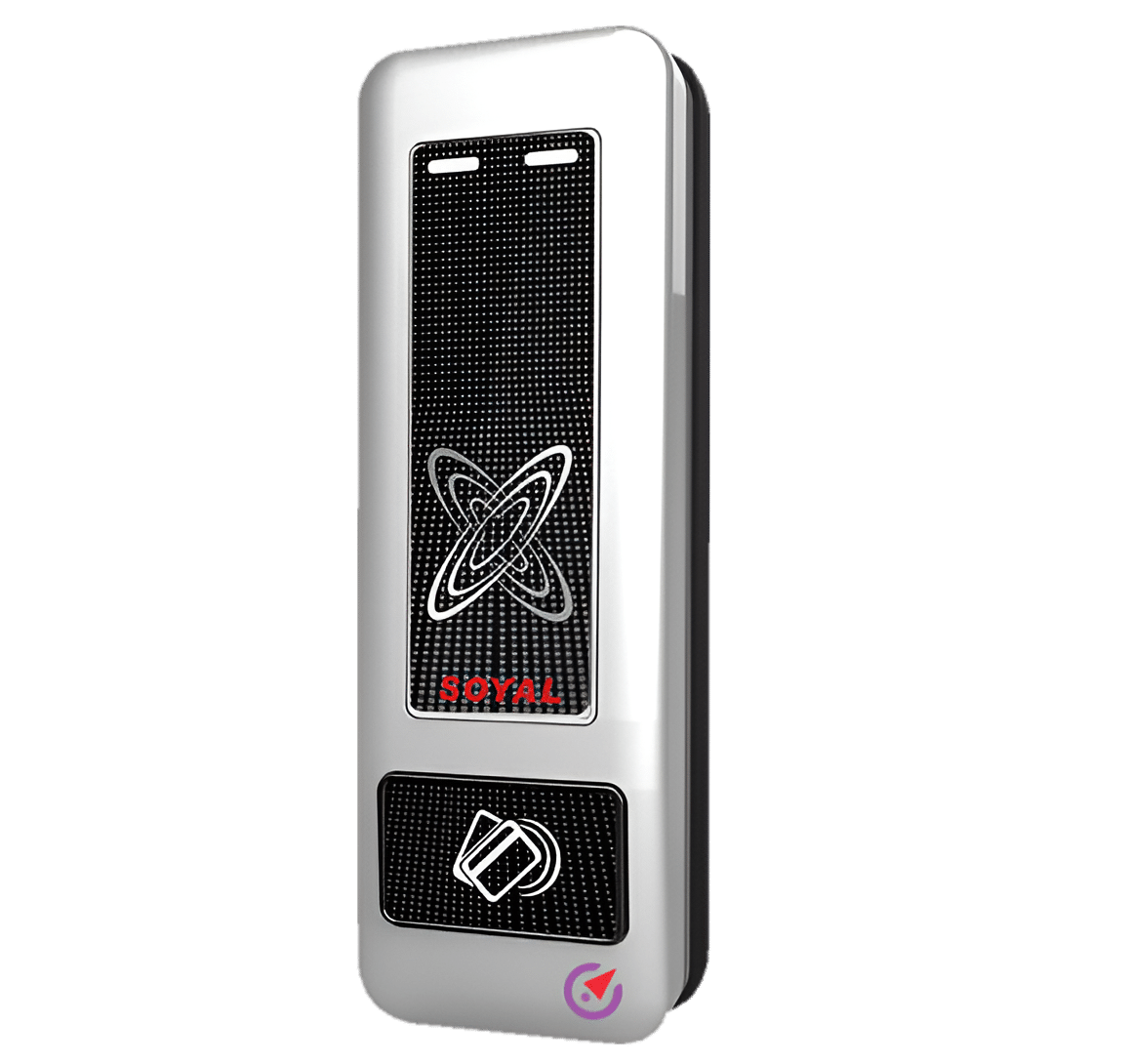

With a sleek design and silverblack color, this contactless door access can read EM or Mifare proximity cards.
Product Description:
AR331HS is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports an RS485 connection, 3000 users and 1500 event memory. It does not have a built-in keypad. Slim design to easily fit into a narrow door frame.
Product Features:
- Output format: WG 26 / 34, ABA II, ASYNC 9600, N, 8, 1
- Support standard 125Khz EM card
- Built-in Watchdog to prevent system from hanging
- Built-in Anti-Tamper functions
- Metal Housing, fashion and the safety design
- Narrow body design, suitable for installation in space limited areas
Technical Specification:
| Model | AR331HSAR331HT | AR331HS_MAR331HT_M |
| Frequency | 125KHz | 13.56MHz |
| Standard | Em Standard | Mifare ISO14443A |
| Reading Range(Depends on Tags) | 3-7cm | 1-3cm |
| Power Supply | 10-24VDC | |
| Power consumption | <3W | |
| Baud Rate | RS-485 | |
| Temperature | 9600 bps (N, 8, 1) | |
| Digital Input | Egress (R. T. E.)/ Door contact | |
| Relay Output | Lock Relay | |
| Lock Relay Time | ON/OFF, 0.1-600 Sec. | |
| Alarm Time | Toggle, 1-600 Seec. | |
| Tamper Switch | Limit Switch (Form C) | |
| User Capacity | M4/M8 – 3,000 M6 – 65,000 | |
| Event Log | M4/M8 – 1,500 | |
| External Reader | 1 Weigand Port | |
| Anti-passback | Yes (M4/M8 only) | |
| Lift Control | 32 Floors, 3,000 Users | |
| Serial Port | Yes | |
| Real Time Clock | No | |
| Transistor Output | Arming LED (or Security trigger signal) /Alarm / Duress | |
| Ingress Protection | IP56 | |
| Indicator | 3 LED & 1 Beeper | |
| Keypad Material | Illuminated Touch Panel | |
| Housing Material | Zinc Alloy | |
| Time Zone | 11/63(Connect to Multi-Door Networking Controller) | |
| Operation Mode | Standalone/ Networking | |
| Color | Chrome | |
| Dimensions (mm) | 114(L)X78(W)X33(H) | |
| Weight (g) | 290±10 | |
