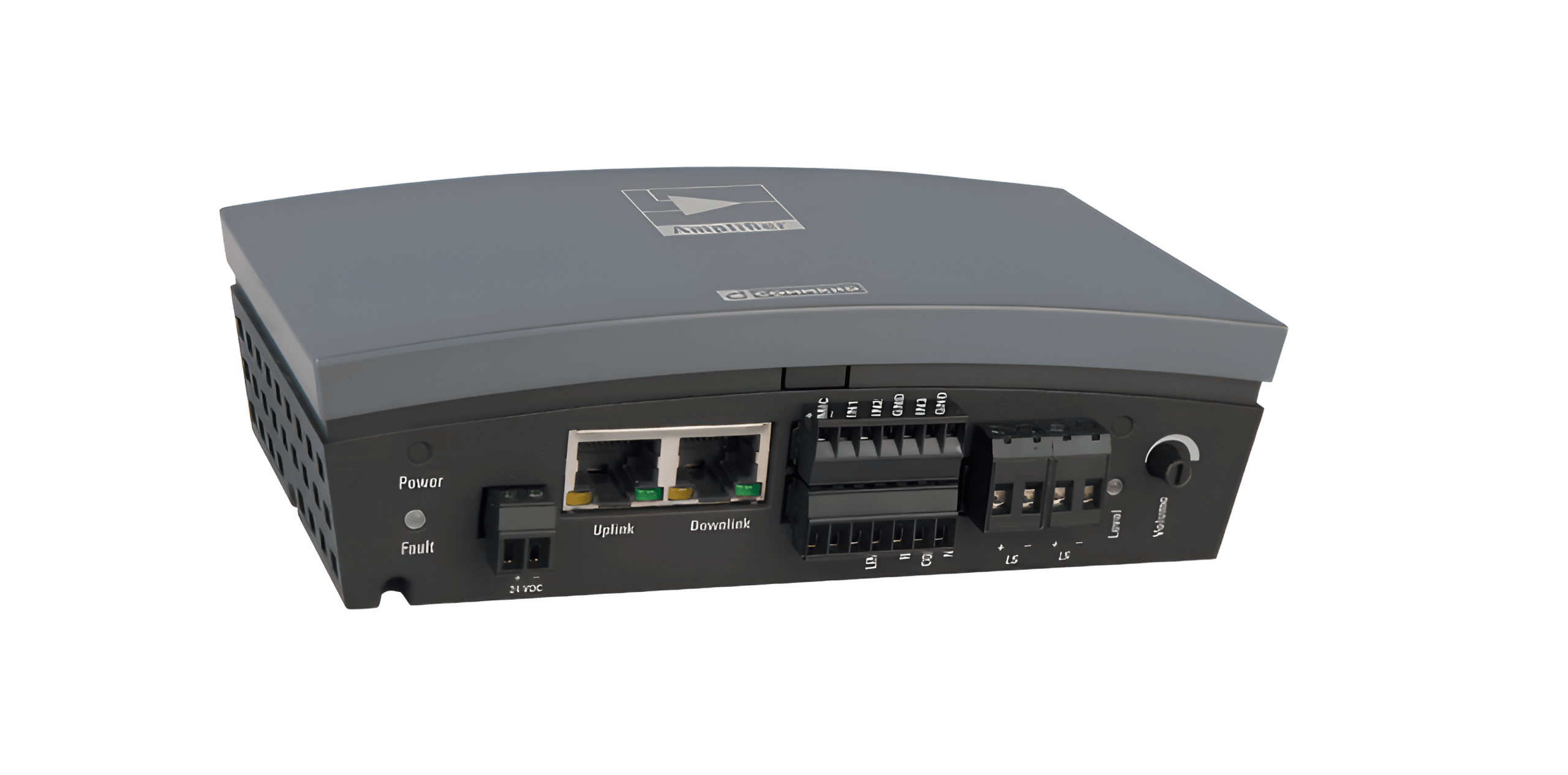

A 20 Watt amplifier with polycarbonate housing.
Product Description:
Their compact design makes the 20 Watt amplifiers ideal for a decentralized, cable saving installation next to PA loudspeakers and Intercom terminals. To provide even greater flexibility, the analogue amplifiers are available as add-in modules that integrate easily into the Intercom terminals themselves.
Product Features:
- 20 watts total output power
- Supports IoIP and SIP
- Class-D amplifier, optimized for high efficiency at low operating temperatures
- Short-circuit- and overload-proof
- Suitable for decentralized on-site use
- Rugged polycarbonate housing
- Line monitoring between amplifier and Intercom Server
- Can be used as an interface to PA systems
- Low impedance audio output; min. impedance: 4 Ω
Technical Specification:
| IP Rating | AF 20A: IP 20 |
| Operating temperature range | –25° C to +55° C (–13° F to 131° F) |
| Storage temperature range | –25° C to +70° C (–13° F to 158° |
| Relative Humidity | up to 95% |
| Connection | Pluggable screw terminals (0,08 mm^2 – 1,5mm^2):Intercom Server, power supply Pluggable screw terminals (0,08 mm^2 – 2,5mm^2):loudspeaker |
| Power supply | 20 – 26 VDC(max. 1.1A at 4 Ω / 20W or max. 0.5A at 8 Ω / 10W)Power supply e.g.: PA70W24V |
| Cabling | star feed, 4 wires, twisted pair |
| Frequency response | 50 Hz to 15 kHz (–3 dB) |
| Transmission bandwidth | 16 kHz |
| Output power | 20 watt (RMS) |
| Input impedance | 10 kΩ |
| Input sensitivity | from 390 mV to 3 V |
| Audio output | low resistance, minimum impedance 4 Ω |
| Measurements | AF 20A: 159 x 49 x 87 mm(6.26 x 1.93 x 3.43 inch) AF 20A EB: 130 x 82 x 16 mm(5.12 x 3.23 x 0.63 inch) |
| Weight including package | AF 20A: 180 g (0.4 lbs) AF 20A EB: 67 g (0.15 lbs) |
