A device that utilizes advanced photoelectric technology to provide accurate detection of fires.
Description:

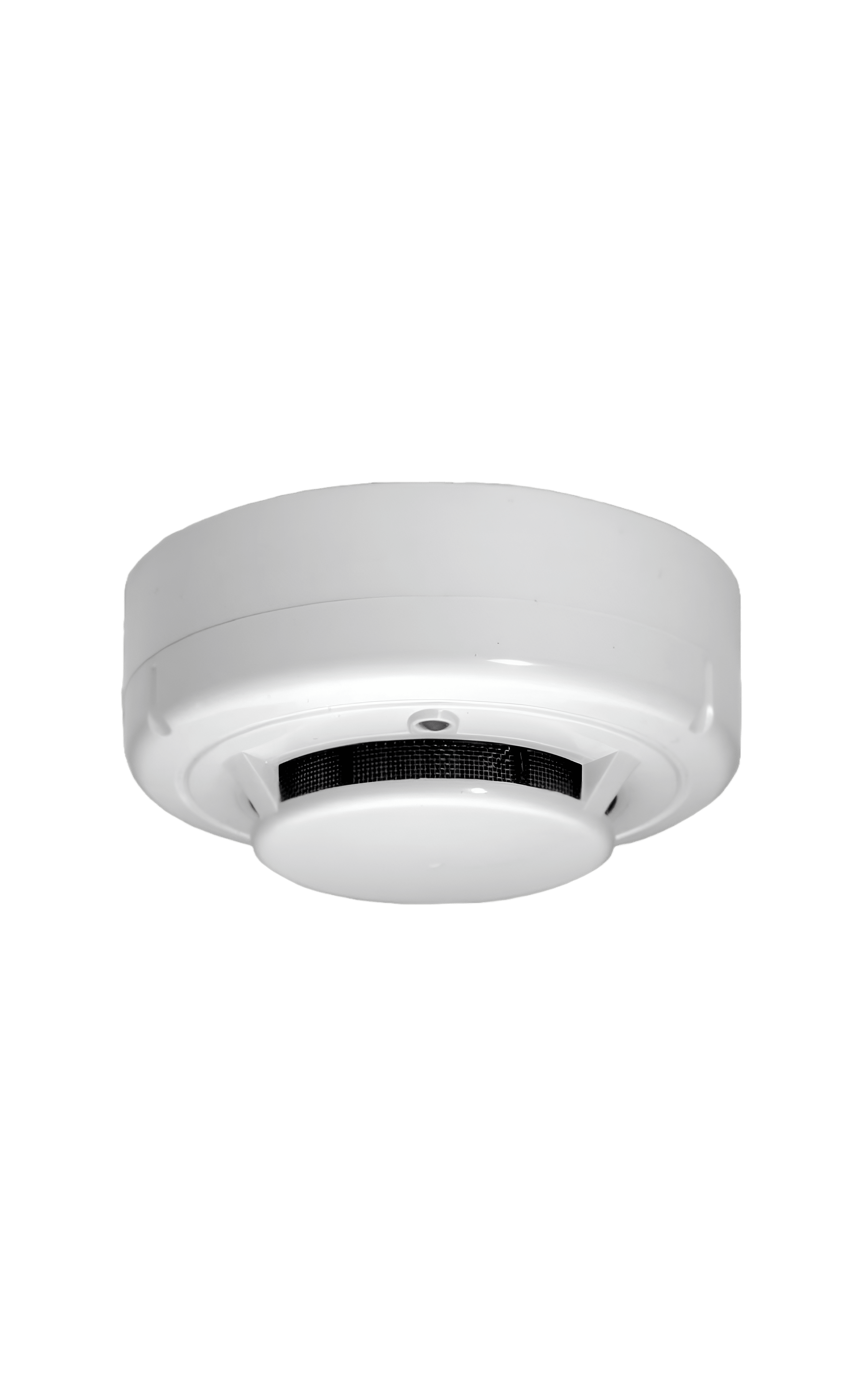

The 2351EIA photoelectric smoke detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. With its multitude of innovative features, This detector acts conventionally, thinks intelligently.
The 2351EIA photoelectric detector incorporates an Application Specific Integrated Circuit (ASIC). Combined with the latest state of the art optical chamber the detector provides efficient and accurate detection of fires with a high level of resilience to non-fire environmental influences.
Product Features:
- Low profile design
- Low current draw
- Backward compatible with Series 100 detector range of bases
- Wide operating voltage 8 to 30VDC
- Bi-colour LED detector status indicator
- Automatic drift compensation
- Programmable sensitivity
- Addressable feature
- Advanced maintenance features via remote hand-held test unit
- Range of detector bases available
- Tested and approved to EN54 – 7:2000 (Amendment 1)
Technical Specifications:
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 8 to 30VDC (Nominal 12/24VDC) |
| Typical Standby Current @ 25ÞC | 50μA @ 24VDC (LED no blink) |
| Maximum Alarm Current (LED On) | 80mA @ 24VDC (Limited by panel) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Application Temperature Range | -300C to +700C |
| Humidity | 5 to 95% Relative Humidity (non condensing) |
| MECHANICAL INFORMATION | |
| Height | 38mm (plus 9mm for B401 base) |
| Diameter | 102mm |
| Weight | 105g (plus 60g for B401 base) |
| Max Wire Gauge for Terminals | 0.75mm2 to 2.5mm2 |
| Colour | Pantone Warm Grey 1C |
| Material | Bayblend FR110 |
